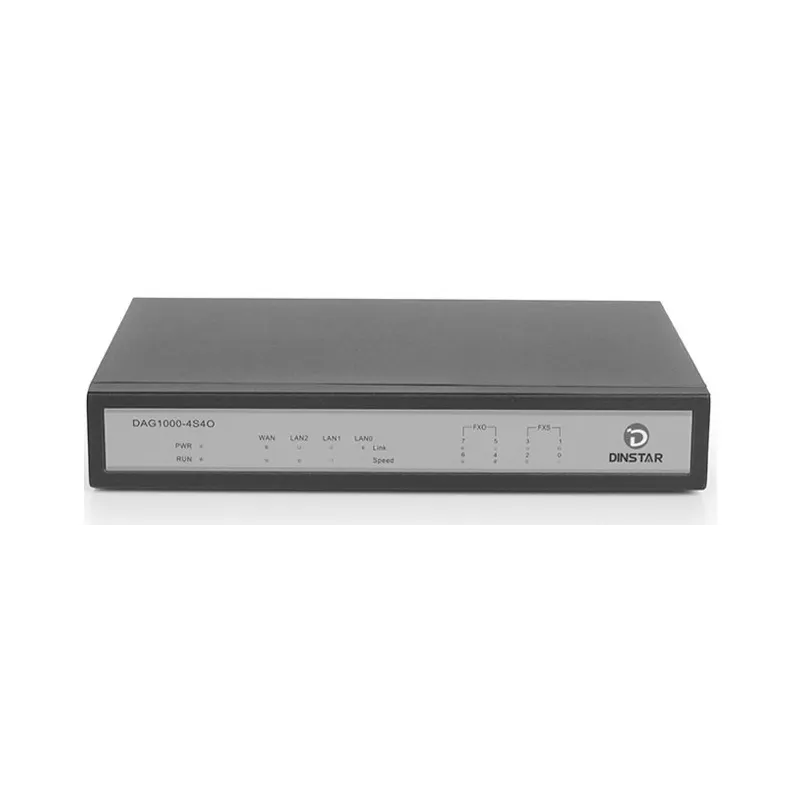

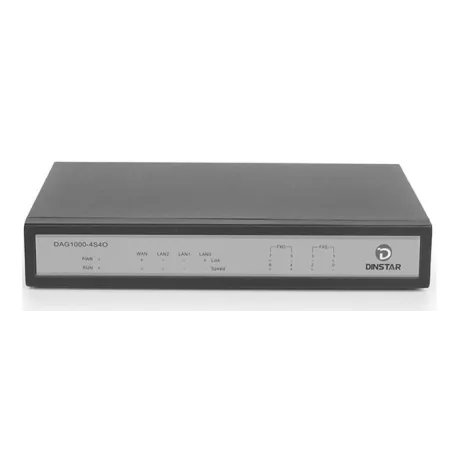

Gateway VoIP 4 fxs + 4 fxo Dinstar DAG1000 4S4O

Gateway VoIP 4 fxs + 4 fxo Dinstar DAG1000 4S4O

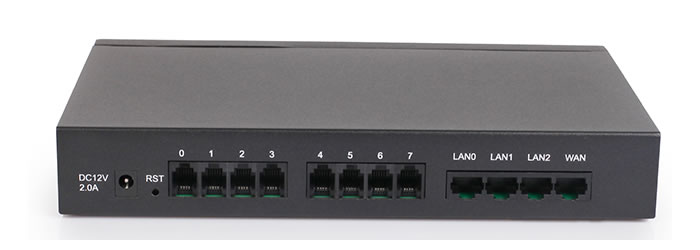

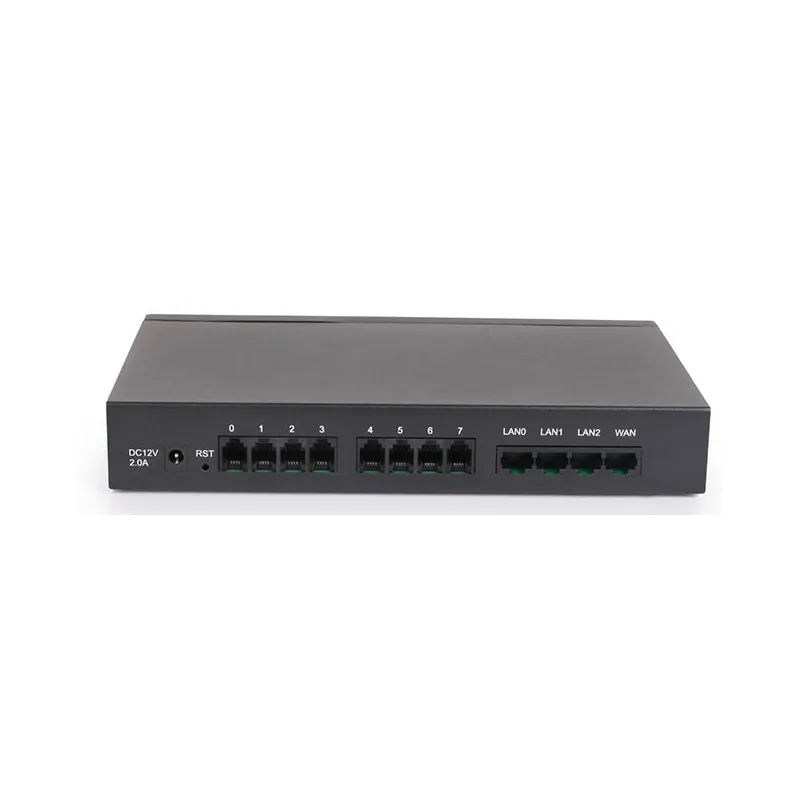

Gateway VoIP con 4 porte fxs  + 4 porte fxo Dinstar, 1 porta Wan, 3 porte LAN, plug RJ11 standard

DAG1000-4S4O è un gateway analogico per connettere terminali e linee analogiche da e per sistemi telefonici IP "on premise" e in cloud. E’ dotato di connettori plug RJ11 standard.

Dispone inoltre di 3 porte LAN ed 1 porta WAN.

Un gateway ideale ad esempio per trasportare linee analogiche verso un centralino full IP o su un centralino virtuale in cloud e riportare in azienda 4 terminali analogici su cui collegare telefoni tradizionali, interfacce citofoniche analogiche, cordless,  ripetitori di chiamata, fax etc...

Interoperabile con i più disffusi centralini VoIP, virtuali e on premise come ad esempio Yeastar, Freepbx, Freeswitch, Asterisk, Broadsoft, 3CX, Panasonic, Unify, Avaya, Wildix, che utilizzano lo standard SIP.

Caratteristiche principali del gateway VoIP 4fxs + 4 fxo

• 4 FXS + FXO hybrid
• Flexible port group
• IP trunk
• Flexible routing and manipulation
• Data/ Voice/ Management VLAN
• Voice and FAX all in one
• Power and network failure life line
• Firmware update automatically /configure update
• TLS

Physical Interfaces

• Phone Interfaces: 4FX and 4FXO, RJ-11
• Ethernet Interfaces:1WAN 3LAN 10/100Mbps

Voice & FAX

• G.711A/U law, G.723.1, G.729 A/B
• Silence Suppression
• Comfort Noise Generation(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation(G.168), with up to 128ms
• Adaptive (Dynamic) Jitter Buffer
• Hook Flash
• Programmable Gain Control
• T.38/Pass-through
• High speed fax up to 14.4kbps
• Modem/POS
• DTMF mode: Signal/RFC2833/INBAND
• VLAN 802.1P/802.1Q (data/voice/management VLANs)
• Layer3 QoS and DiffServ

FXO

• Connector: RJ11
• Dial Mode: DTMF/Pulse Dialing
• Caller ID: FSK, DTMF
• Polarity Reversal
• Answer Delay
• Busy Tone Detection
• No Current Detection

FXS

• Connector: RJ11
• Dial Mode: DTMF and Pulse
• Pulse: 10 and 20 PPS
• Caller ID: DTMF/FSK CLI Presentation
• Max Cable Length: 3 km
• Reversed Polarity
• Programmable Call Progress Tone

VoIP

• Protocol:SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262,3263,3264,3265,3515,2976,3311
• SIP TLS/SRTP
• RTP/RTCP, RFC2198, 1889
• RFC4028 Session Timer
• RFC3266 IPv6 in SDP
• RFC2806 TEL URI
• RFC3581  NAT,rport
• Outbound Proxy
• DNS SRV/ A Query/NATPR Query
• SIP Trunk
• Early Media/Early Answer
• NAT:STUN, Static/Dynamic NAT

Software Features

• Port Group
• Web ACL
• Telnet ACL
• Action URL
• Digitmap
• Routing Rules based Prefixes
• Caller/Called Number

Maintenance

• SNMP v1/v2/v3
• TR069
• Auto Provisioning
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via Web
• CDR
• Syslog
• Network Capture
• Outward Test(GR909)
• NTP/Daylight Saving Time
• IVR local Maintenance
• Cloud-based Management

Network

• Static/Dynamic IP,
• PPPoE
• DHCP Client
• IPv4/IPv6
• TCP, UDP,TFTP, FTP, ARP,RARP,
• Ping, NTP, SNTP, HTTP/HTTPS, DNS
• Ping / Tracert
• DHCP Option 66,120,121
• Software Features
• Port Group
• Web ACL
• Telnet ACL
• Action URL
• Digitmap
• Routing Rules based Prefixes
• Caller/Called Number
• Manipulation

Environmental

• Power supply:Input 100~240VAC Output 12VDC, 2A
• Power consumption(W): 20W
• Operator Temperature: 0 ℃ ~ 45 ℃
• Storage Temperature: -20 ℃ ~80 ℃
• Humidity: 10%-90% no condensation
• Compliance: CE, FCC, RoHs

Garanzia 12 mesi
