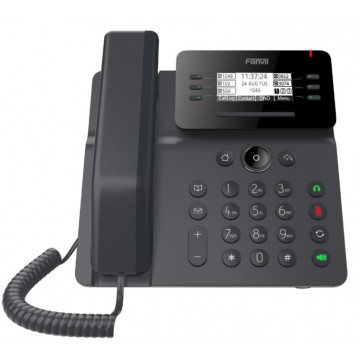

Fanvil V62
Fanvil V62 è un telefono IP elegante ed essenziale per postazioni operative e call center, supporta 6 linee SIP ed è dotato di 15 tasti programmabili e display monocromatico.
Fanvil V62 fuori produzione Sostituito da Fanvil V62G V62 Pro W62W
Il Fanvil V62 ha un design raffinato ed è un terminale essenziale, studiato appositamente per uffici operativi, dove comunque eleganza ed il design sono una componente essenziale. Fanvil V62 fa parte della nuova serie 2022 che include V67, V65, V64. Telefoni IP per ogni esigenza di funzione e connettività.

Le caratteristiche principali del telefono IP Fanvil V62:
- 6 linee SIP
- 15 tasti funzione programmabili
- HD audio
- Display monocromatico 2.7" 192*64 Dot-Matricx
- 1 porta USB
- Supporta EHS (cavo di sgancio elettronico per cuffie cordless)
- Dual Gigabit ports
- PoE
- Audioconferenza
- Compatibile con le piattaforme cloud, centralini software e centralini hardware più diffusi: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, YEastar, Openvox...
- Opzione: Alimentatore 5V 1A

Phone Features
- Local Phonebook (1000 entries)
- Remote Phonebook (XML/LDAP, 1000 entries)
- Call logs (In/out/missed, 1000 entries)
- Blocked List/Allowed List
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Support Bluetooth headset (Via BT dongle BT20)
- Support Wi-Fi Dongle (Via WF20)
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording(through server)
- Action URL / Active URI
- uaCSTA
- Dial Plan
- SIP Hotspot
- Multicast
- Action Plan
- Group listening
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- BLF
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 6-way Conference
- Hot Line
- Hotdesking
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz
- Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.729AB, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Network
- Physical: 10/100/1000 Mbps Ethernet
- dual bridged port for PC bypass
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static IP / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- CDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLSl
- RTP/RTCP/SRTP
- STUN
- DHCP
- CDP
- LLDP
- PPPoE
- 802.1x
- OpenVPN
- SNTP FTP/TFTP
- HTTP/HTTPS
- TR-069
- AES128 & AES256
Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- LCD:2.7-inch (192x64) graphical LCD with backlight
- Keypad: 37 keys, including
- 6 DSS keys with LED indicator light
- 6 Function keys (Contact, Hold, MWI, Mute, Headset, Redial)
- 4 Soft-keys
- 4 Navigation keys
- 1 OK key
- 1 Return key
- 12 Standard Phone Digits keys
- 2 Volume Control keys, Up/Down
- 1 Hands-free key
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT5.E Ethernet Cable x1
- Desk Stand x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- USB2.0 Port x1: Standard A, Connect with Flash Driver&USBheadset and USB dongle
- Security lock port x1
- Power: DC5V/1A or PoE
- Working Temperature: 0~45℃l Working Humidity: 10~95%
- Installation: Desktop Stand, Wall-mounted (need an additional wall hanging parts)
- Color: Gunmetal
- Device Dimensions:204x202x31mm
- Gift Box Dimensions: 307x258x71 mm
- Outer CTN Dimensions: 5536x380x327 mm(10 PCS)
