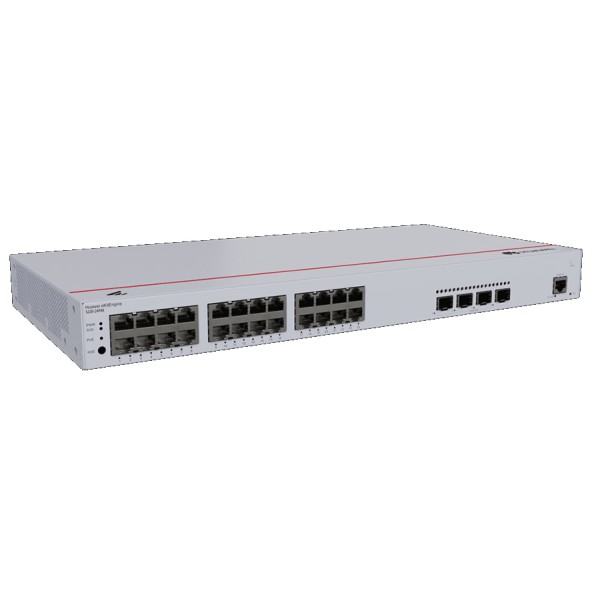

Huawei S220-24P4X switch 24 porte GE PoE serie eKit
Huawei S220-24P4X switch 24 porte GE PoE è uno switch L2 con 24 porte PoE + 4 porte uplink 10 G SFP+
L'intera serie Huawei eKit Engine adotta un nuovissimo design con un grande impatto visivo, vincendo il German Red Dot Design Award 2022.
Posso essere utilizzati per realizzare reti cablate e wireless aggiungendo ad esempio, gli access point Huawei WiFi6.
Huawei S220-24P4X switch Gigabit
- Budget PoE 400W
- QoS
- Basic dimensions 43.6 mm x 442.0 mm x 220.0 mm
- Chassis height [U] 1 U rack 19"
- Chassis material Metal
- Weight without packaging 2.92 kg
- Typical power consumption 37.12 W
- Typical heat dissipation 126.65 BTU/hour
- Maximum power consumption Without PoE: 44.35 W, Full PoE load: 485.91 W (PoE: 400 W)
- Maximum heat dissipation BTU/hour Without PoE: 151.32 Full PoE load: 1657.92
- Static power consumption 27.07 W
- MTBF [years] 60.18 years
- MTTR [hours] 2 hours
- Availability > 0.99999
- Noise at normal temperature (acoustic power) [dB(A)] 49.3 dB(A)
- Noise at normal temperature (acoustic pressure) [dB(A)] 37.3 dB(A)
- Number of card slots 0
- Number of power slots 0
- Number of fans modules 2
- Power supply mode AC built-in
- Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz High-voltage DC input: 240 V DC
- Input voltage range [V] AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC
- Maximum input current 6 A
- Memory 2 GB
- Flash memory Physical space: 1 GB
- Console port RJ45
- Service port surge protection [kV] Common mode: ±7 kV
- Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
- Ingress protection level (dustproof/waterproof) IP20
- Types of fans Built-in
- Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
- Airflow direction Air intake from left and front, air exhaustion from right
- PoE Supported
- EMC certification
- Safety certification
- Manufacturing certification
