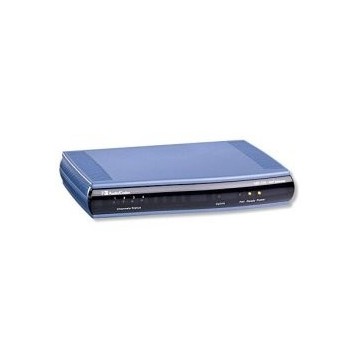

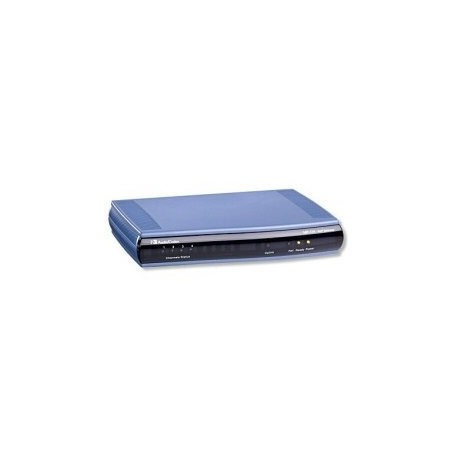

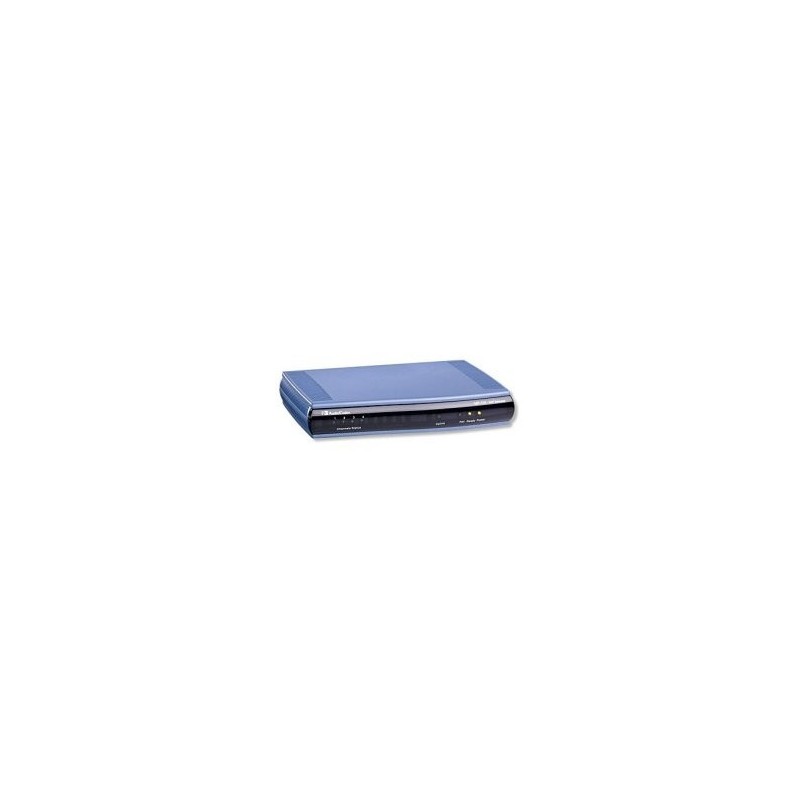

Gateway VoIP per 4 porte FXO Audiocodes MP114

AudioCodes MediaPack Series è un Gateway VoIP analogico che ha lo scopo di connettere i telefoni tradizionali, fax e sistemi PBX con la rete di telefonia basata su IP. Questi prodotti sono progettati e testati per essere pienamente interoperabili con i principali softswitch, server SIP e gatekeepers H.323.

La vasta gamma di funzionalità permette inoltre l'integrazione con un gran numero di applicazioni nella gestione della rete aziendale. I gateway MediaPack sono infatti utilizzati da Carriers e Service Providers nelle reti di accesso per il collegamento di Multi-Tenant Unit (MTU), clienti IPCentrex e utenti di collegamenti wireless e satellitari.

Le imprese utilizzano il gateway MediaPack per connettere i loro sistemi PBX su una infrastruttura IP, inoltre nelle applicazioni IPCentrex e IP-PBX aumenta la disponibilità di postazioni remote e fornisce la funzionalità  SAS (Stand Alone Survivability) nel caso in cui cada la connessione IP tra sede distaccata e il server centrale SIP, server Proxy o IP-PBX centrale.

Supporta da 2 a 24 porte analogiche (FXS/FXO).

Caratteristiche tecniche del gateway

• 4 porte fxO
• 1 porta di rete 10/100
• Codec audio:G.711, G.723.1, G.726, G.729A, EG.711, G.722
• 3-Way Conference 3-Way conference with local mixing
• VLAN QoS DiffServ, TOS, 802.1 p/Q VLAN tagging
• IP Transport RTP/RTCP per IETF RFC 3550 and 3551 PPPoE, ThruPacketTM (aggregated RTP streams of several channels for saving network bandwidth)

Signaling

• Signaling FXS Loop-start FXS, FXO Loop-start FXS Loop-start
• In-band Signaling DTMF (TIA 464B)
• User-defined and call progress tones
• Out-of-Band Signaling DTMF Relay (RFC 2833), DTMF via SIP INFO
• Control MGCP (RFC 2- 05), H.323 (V4), SIP (RFC 3261)

Provisioning

• Protocols BootP, DHCP, TFTP and HTTP for Automatic Installation
• DHCP options 66.67 in auto update mode
• Remote management using Web browser
• EMS (Element Management System) / SNMP V3
• Syslog support
• RS-232 for basic configuration (via CLI)
• Voice Menu using touch tone phone for basic configuration

Security

• Media SRTP
• Control H.235, IPSEC, TLS/SIPS
• Management HTTPS, Access List, IPSEC

Physical

• Power 100-240 V AC/50-60 Hz or -48V DC*
• Dimensions (HxWxD) 42x172x220mm 42x172x220mm 44x445x269mm
• Mounting Rack mount, Table top, Wall mount

Additional Features

• Message Waiting Indication Applying 100V DC online for lighting bulb in handset, FSK, Stutter Dial Tone
• High Availability PSTN Fallback: Support of PSTN fallback due to Power failure, if the IP connection is down or due to customer defined IP QOS thresholds
• Stand Alone Survivability (SAS): Supports SAS of up to 25 SIP users (UA) per MediaPack
• Ring voltage Sine: 54 VRMS typical (balanced ringing only)
• Ring Frequency 25-100Hz
• Maximum Ringer Load REN3
• Loop Impedance Up to 1500 ohm for the MP-11x, Up to 1600 ohm for the MP-124 (including phone impedance)
• Lifeline Supported in all ports of Mixed FXS/FXO and in first port of MP-114/FXS and MP-118/FXS using special Lifeline cable
• Caller ID Bellcore GR-30-CORE Type 1 using Bell 202 FSK modulation, ETSI Type 1, NTT, Denmark, India, Brazil, British and DTMF ETSI CID (ETS 300-659-1)
• Polarity Reversal / Wink Immediate or smooth to prevent erroneous ringing
• Metering Tones 12/16 KHz sinusoidal bursts, Generation on FXS
• Distinctive Ringing By frequency (15-100 Hz) and cadence patterns
• Outdoor Protection** Over-voltage protection and surge immunity

Homologation

• EMC EN55022 Class B , CFR Part 15 Class B, EN55024,
• EN61000-3-3, EN61000-3-2, VCCI Class X1 (equal to class B)
• Safety EN60950-1 Safety of information technology equipment
• UL60950-1 Including compliance to section 6 (over-voltage protection)

Telecom TBR-21, TIA-968
