Fanvil X7A videotelefono IP Android wifi bluetooth

Videotelefono IP Fanvil X7A

Videotelefono IP Fanvil X7A con sistema operativo Android 9.0

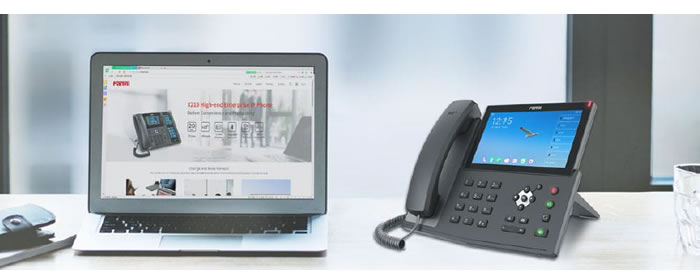

Il videotelefono IP Fanvil X7A, è un terminale hi-end di riferimento nel panorama delle telefonia IP. Il sistema operativo Android 9.0 ha un'interfaccia utente intuitiva  e lo rende semplice da usare. Può essere dotato di videocamera USB opzionale CM60.

Installando la webcam USB opzionale CM60, diventa un videotelefono con  webcam integrata per videoconferenze.

E' ricco di funzionalità ed è interoperabile praticamente con tutti i sistemi telefonici con SIP standard.

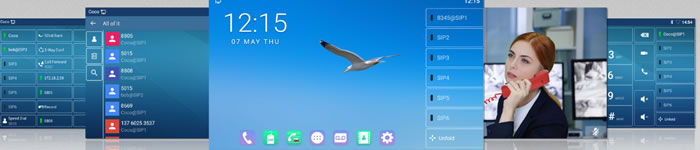

L'ampio display touch screen a colori da 7", il wifi e bluetooth integrati, la porta USB 2.0, forniscono a questo videotelefono IP tutte le connessioni per audio, cuffie e ovviamente di rete (ovviamente è dotato di 2 porte LAN Gigabit oltre al Wi-Fi dual band)

112 tasti touch configurabili - Supporto regolabile su 2 angolazioni  40 e 50°

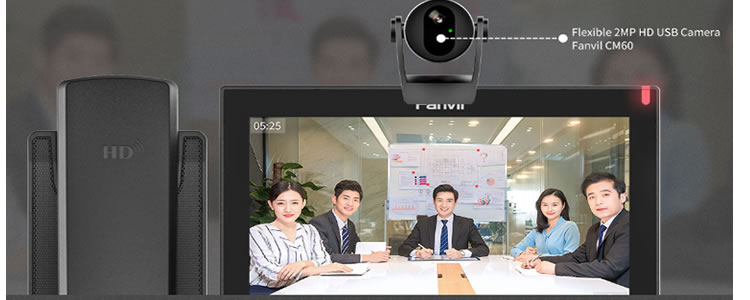

Sotto il fanvil X7A con webcam CM60 opzionale installata

Caratteristiche tecniche del videotelefono IP Fanvil X7A

• 20 SIP lines, 3-way conference, hotspot
• 7” capacity color touch-screen
• HD voice: HD handset, HD speaker
• Built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi
• Up to 112 DSS keys available at the display
• Video Codec H.264 for receiving video calls
• Dual Gigabit ports, integrated PoE
• Stand with 2 adjustable angles of 40 and 50 degrees
• Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya, Yeastar Yeastar cloud, Ezcloud...

Dati generali del videotelefono Fanvil X7A touchscreen

• Built-in Bluetooth 4.2: Support Bluetooth headset
• Built-in Wi-Fi
• 2.4GHz, 802.11 b/g/n
• 5GHz, 802.11 a/n/ac
• 20 SIP Lines
• HD Voice

• Support receiving Video call
• PoE Enabled
• 7-inch (1024x600) color touch screen
• Handset / Hands-free / Headset mode
• Intelligent DSS Keys(Virtual buttons)
• Optional External Power Supply

Funzioni telefoniche

• Android 9.0 OS
• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/out/missed, 1000 entries)
• Black/White List Call Filter
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Recording
• Action URL / Active URI
• uaCSTA
• Frame rate selection: 5 ~30fps
• Video from remote site can be displayed in full screen

Funzionalità e caratteristiche audio

• HD Voice Microphone/Speaker (Handset/Hands free, 0 ~ 7KHz
• Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband C odec : G.711a/u, G. iLBC
• Wideband C odec : G.722 , Opus
• Full duplex Acoustic Echo Canceller (AEC)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In band, Out of Band DTMF Relay(RFC2833) / SIP INFO

Rete

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PCbypass
• IP Mode:IPv4
• IP Conf iguration: Static / DHCP
• Network Access Control: 802.1x
• VPN: OpenVPN Requires third party app support)
• VLAN
• LLDP
• CDP
• QoS

Protocolli

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• CDP
• LLDP
• PPPoE
• 802.1x
• OpenVPN Requires third party app support)
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR 069

Funzioni di chiamata

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (On server)
• 3-way Conference
• Hot Line
• Hot desking

Funzionalità e caratteristiche video

• Video decoding: H.264
• Video call resolution: CIF/VGA/4CIF/720P
• Image format: JPEG/PNG/BMP
• Video format: MP4
• Bandwidth selection: 64kbps~4Mbps
• Videocamera CM60 OPZIONALE (8/2020)

Deployment & Management

• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
• PNP/TR 069
• Web Management Portal
• Supports the third party communication APP
• Supports Web, Telnet
• Supports encrypted configuration files download with AES
• Supports Web upgrade
• Supports factory reset data

Caratteristiche fisiche e alimentazione Fanvil X7A

• LCD x1: 7 inch ( 1024x600 ) color screen LCD
• Keypad: 26 keys, including
• 5 Function keys (Hold , Mute, Headset, Redial
• 4 Navigation keys
• 1 OK key
• 1 Return key
• 12 Standard Phone Digits keys
• 2 Volume Control keys, Up/Down
• 1 Hands free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• RJ9 Port x2: Handset x1, Head set x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to
• USB 2.0 Port x1 : Standard A, Connect with Flash Driver
• Safety keyhole x1
• Power : 5 V/ 2 A or PoE
• Power Consumption (P o E): 1.5961.596~11.86W
• Power Consumption ( 0.907~9.38 W
