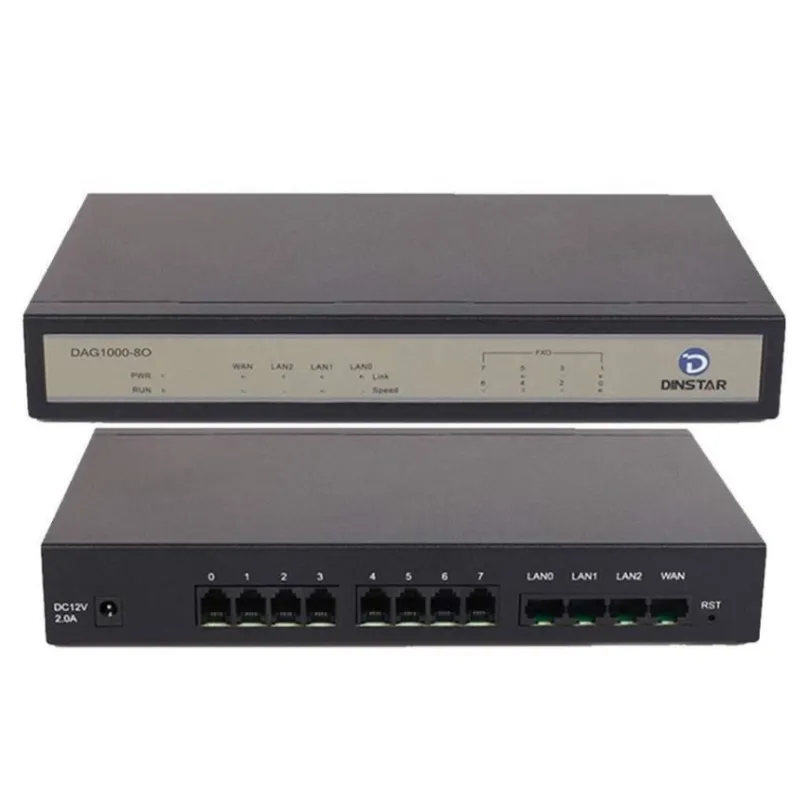

VoIP Gateway 8 fxo Dinstar DAG1000-8O 1 Wan 3 LAN

VoIP Gateway 8 fxo Dinstar DAG1000-8O 1 Wan 3 LAN

VoIP gateway con 8 porte fxo, 1 porta WAN + 3 porte switch

Il voip gateway DAG1000-8O è un gateway per collegare 8 risorse analogiche su un IPPBX, cloud pbx (virtual pbx) o per remotizzarle via IP in altre sedi

E’ dotato di connettori plug RJ11 standard sul retro, 1 porta Wan e 3 porte LAN 10/100.

Un gateway ideale ad esempio per trasportare linee analogiche verso un centralino full IP o su un centralino virtuale in cloud...

Interoperabile con i più disffusi centralini VoIP, virtuali e on premise come ad esempio Yeastar, Freepbx, Freeswitch, Asterisk, Broadsoft, Wildix, 3CX, Panasonic, Unify, Avaya, che utilizzano lo standard SIP.

Supporta SIP - IMS

Caratteristiche principali del gateway VoIP 8 fxo

• Cost effective gateway with 8 FXO ports
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Multiple codecs: G.711A/U,G.723.1,G.729A/B etc.
• Fully compatible with leading IMS/NGN, SIP based IP telephony system
•  TLS

Physical Interfaces

• Phone Interfaces: 8 FXO, RJ-11
• Ethernet Interfaces:1WAN 3LAN 10/100Mbps

FXO

• Connector: RJ11
• Dial Mode: DTMF/Pulse Dialing
• Caller ID: FSK, DTMF
• Polarity Reversal
• Answer Delay
• Busy Tone Detection
• No Current Detection

Voice & FAX

• G.711A/U law, G.723.1, G.729A/B, G.726
• Silence Suppression
• Comfort Noise Generation(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation(G.168), with up to 128ms
• Adaptive (Dynamic) Jitter Buffer
• Hook Flash
• Programmable Gain Control
• T.38/Pass-through
• High speed fax up to 14.4kbps
• Modem/POS
• DTMF mode: Signal/RFC2833/INBAND
• VLAN 802.1P/802.1Q (data/voice/management VLANs)
• Layer3 QoS and DiffServ

VoIP

• Protocol:SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262,3263,3264,3265,3515,2976,3311
• SIP TLS/SRTP
• RTP/RTCP, RFC2198, 1889
• RFC4028 Session Timer
• RFC3266 IPv6 in SDP
• RFC2806 TEL URI
• RFC3581  NAT,rport
• Outbound Proxy
• DNS SRV/ A Query/NATPR Query
• SIP Trunk
• Early Media/Early Answer
• NAT:STUN, Static/Dynamic NAT

Software Features

• Port Group
• Web ACL
• Telnet ACL
• Action URL
• Digitmap
• Routing Rules based Prefixes
• Caller/Called Number

Maintenance

• SNMP v1/v2/v3
• TR069
• Auto Provisioning
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via Web
• CDR
• Syslog
• Network Capture
• Outward Test(GR909)
• NTP/Daylight Saving Time
• IVR local Maintenance
• Cloud-based Management

Network

• Static/Dynamic IP,
• PPPoE
• DHCP Client
• IPv4/IPv6
• TCP, UDP,TFTP, FTP, ARP,RARP,
• Ping, NTP, SNTP, HTTP/HTTPS, DNS
• Ping / Tracert
• DHCP Option 66,120,121
• Software Features
• Port Group
• Web ACL
• Telnet ACL
• Action URL
• Digitmap
• Routing Rules based Prefixes
• Caller/Called Number
• Manipulation

Environmental

• Power Supply: 100-240VAC, 50-60 Hz @ External Adapter DC12V

• Power Consumption: DAG1000-8O: 20W
• Operating Temperature:0 ℃  ~ 45 ℃
• Storage Temperature: -20 ℃ ~80 ℃
• Humidity:10%-90% Non-Condensing
• Dimensions(W/D/H):242*152*40mm
• Unit Weight: 1kg
• Compliance: CE, FCC, RoHs

Garanzia 12 mesi
