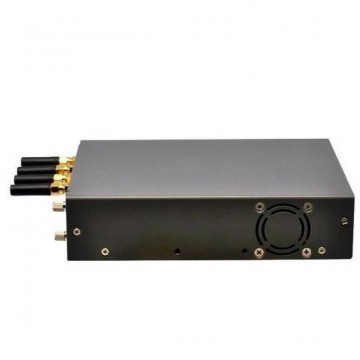

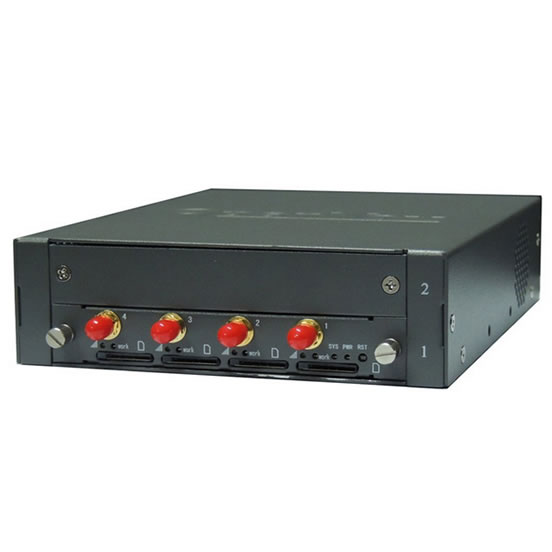

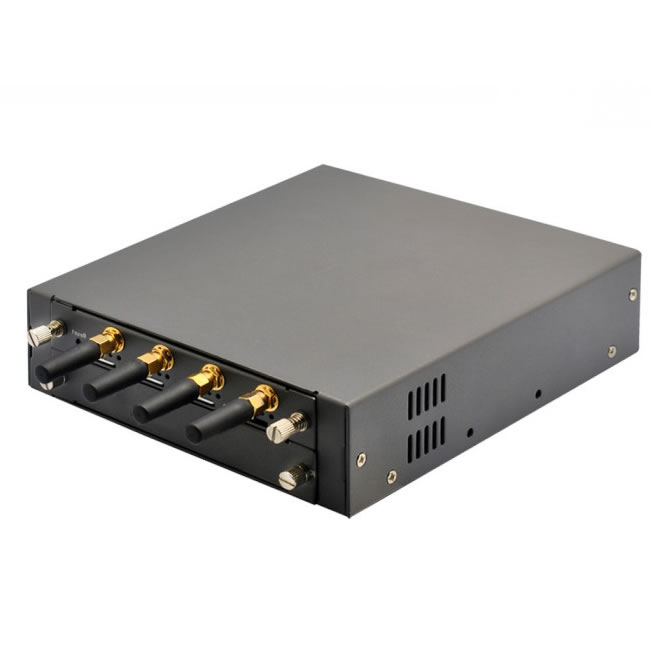

Openvox VS-GW1202-4G GSM VoIP gateway

Openvox VS-GW1202-4G VoIP gateway GSM

Openvox VS-GW1202-4G è un VoIP gateway GSM (SIP-IAX2), che gestisce fino a 4 SIM per centralini IP asterisk based, freepbx, elastix, 3cx, yeastar, zycoo, grandstream e molti altri, interoperabili con il protocollo SIP e IAX2.

Si installa in modo semplice, sfruttando la rete LAN aziendale, quindi è possibile installarlo in una zona servita da LAN, in cui il segnale dell'operatore telefonico è di buona qualità. Si configura attraverso un'interfaccia web in inglese.

Caratteristiche generali dei gateway GSM IP serie VS-GW1202 Openvox:

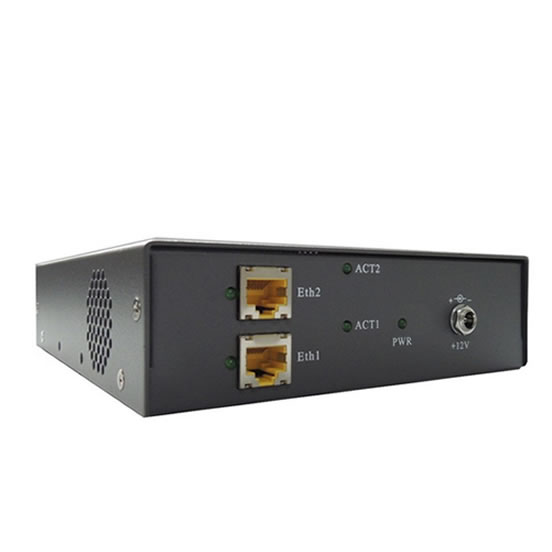

• 2 Porte LAN 10/100




• Inserimento SIM card veloce  (hot swap)



• CLID Display & Hide (Need operators’ support )
• GSM: 850/900/1800/1900 MHz
• Real Open API Protocol (based on Asterisk)
• Call Duration Limitation
• SMSC-SMS-USSD
• Gain Adjustment
• PIN Identification



• IMEI Number Automatically Modify
• Band Binding
• Bind Carrier
• Optional GSM/UMTS Voice Codec
• Call Waiting
• Call Forwarding (unconditional, no reply, busy, not reachable)
• GSM/UMTS Ports Group Management



• SMS Bulk Transceiver, Sent to Email and Automati-cally Resend



• SMS Coding/Detecting Automatically Identification
• SMS Remotely Controlling Gateway
• SMS Forwarding and Quick Reply
• USSD transceiver

VoIP

• Support SIP, IAX2 Protocol
• Add, Modify & Delete SIP/IAX2 Trunk
• SIP/IAX2 Registration with Domain
• Combine Different SIP/IAX2 Trunk into Group
• DTMF Mode: RFC2833/Inband/SIPInfo
• SIP V2.0 RFC3261 Compliance
• Multiple SIP/IAX2 Registrations modes: None (No registration, just IP and Password authenication)Endpoint registers with this gateway (work as a SIP Sever)This gateway registers with the endpoint (work as a SIP/IAX2 client)

Rete

• IPv4, UDP/TCP, DHCP, TFTP, TELNET, HTTP/HTTPS, SMTP, POP3
• HTTP/SSH (Optical Telnet)
• Ping & Traceroute Command on the Web
• Two Types of IP Access
• Simple Security Strategy: white list, black list, security rules

Funzioni

• Abundant Codecs ： G.711A, G.711U, G.729, G.722, G.723, G.726, GSM
• Simple and convenient configuration via Web GUI
• Firmware Update by HTTP
• Automatically Reboot
• Extensible Automatic Callback and Speed Dial
• TTL Serial Port and Virtual Serial via TCP/IP Proto-col
• Support DISA
• Customizable IVR
• Multiple Detailed LOG Output
• Call Status Display
• PDD/ACD/ASR/BER Display
• Mobile number portability (MNP)
• CDR (More than 200,000 Lines CDRs Storage Local-ly)
• Support configuration files backup and upload
• Support for custom scripts, dialplans
• Least Cost Routing(LCR),according to Time, Port, Calling Number
• Independent System for Each Module
• Restore Factory Settings
• High Equipment Materials Specifications, Suitable for Long Distance Transportation

Dimensioni e peso:

• Dimensioni: 150 x 190 x 45 mm
• Peso:1300 gr

Richiedi una consulenza al nostro team per valutare  le tue esigenze e predisporre una soluzione tecnico economica su misura, al miglior prezzo, con la garanzia soddisfatto al 100% Ezdirect.

Attenzione: Descrizione provvisoria, possono esserci cambiamenti sulle funzionalità e immagini reali del prodotto senza preavviso.
