Scheda Openvox GWM420G 4 x GSM

Codice: GWM420G    SKU: GWM420G
Openvox
Risparmio € 70,00
Listino: € 669,00
€ 599,00
€ 730,78 iva incl.

Non disponibile Attualmente non disponibile, richiedi quotazione con tempi di consegna qui oppure contatta il nostro staff allo 0585 821163

Condizione: Nuovo

-
+
  • Dettagli

  • Scheda tecnica

  • Download Download (1)

  • Recensioni

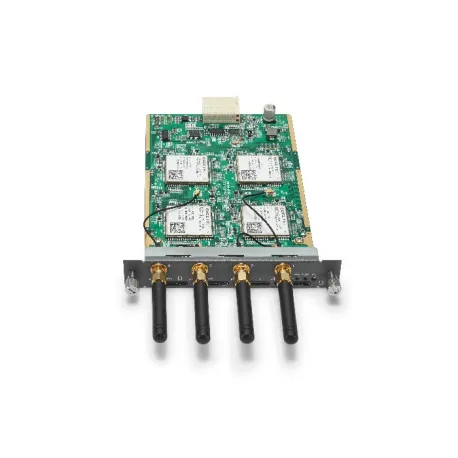

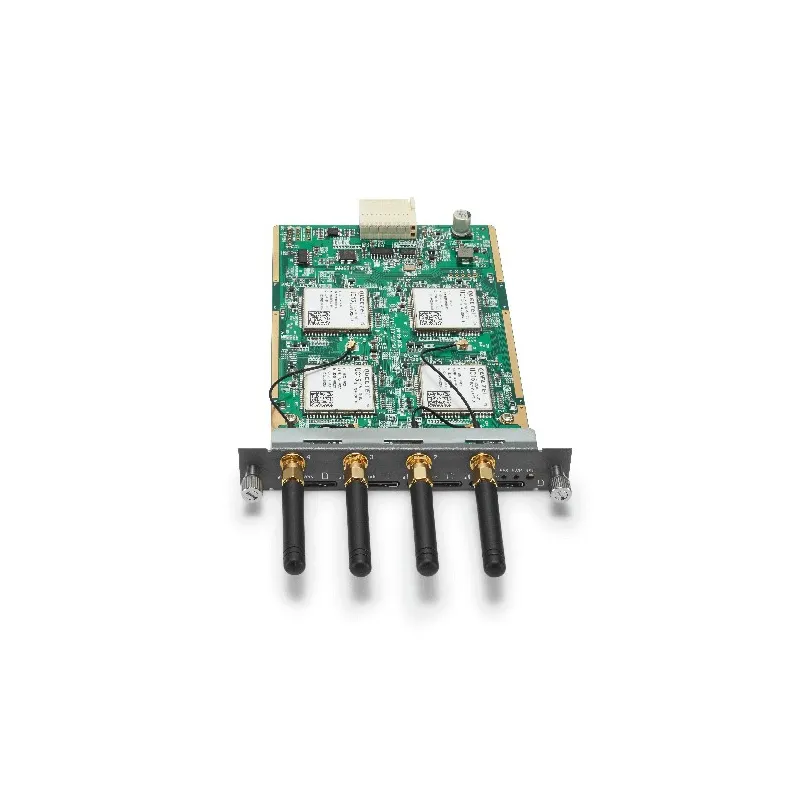

Scheda Openvox GWM420G supporta 4 SIM GSM

La scheda Openvox GWM420G può contenere fino a 4 SIM GSM

The GWM420G is 4 ports GSM gateway module, which can work with our GW1202V2/GW1600V2/GW2120V2





Technical Specifications:

  • Frequency range: GSM 850/900/1800/1900MHz
  • Storage temperature range: -40~125℃
  • Operation temperature range: 0~50℃
  • Operation humidity range: 10%~90% non-condensing
  • Power source:1U ATX power souce,12V/12A
  • Max Power Consumption: 7W
  • Dimension: 13cm × 2.1cm × 20cm
  • Weight: 162g
  • Warranty: One Year



System Features

  • Combine Different SIP/IAX2 Trunk into Group
  • CLID Display & Hide (Need operators' support )
  • Random call interval
  • Call Duration Limitation
  • Single Call Duration Limitation
  • Real Open API Protocol (based on Asterisk)
  • Support DISA
  • SMSC/SMS/USSD
  • PIN Identification
  • Optional Voice Codec
  • Ports Group Management
  • SMS Bulk Transceiver, Sent to Email and Automatically Resend
  • SMS Coding/Detecting Automatically Identification
  • SMS Remotely Controlling Gateway
  • SMS Forwarding and Quick Reply
  • USSD transceiver
  • Outbound
  • Automatically Reboot
  • Support MMP
  • Support for custom scripts, dialplans
  • Support Openvox cloud manage



VoIP Characters



  • Support SIP,IAX2 Protocol
  • Add, Modify & Delete SIP/IAX2 Trunk
  • SIP/IAX2 Registration with Domain
  • SIP V2.0 RFC3261 Compliance
  • DTMF Mode: RFC2833/Inband/SIP Info
  • Multiple SIP/IAX2 Registrations modes:
  • Abundant Codecs:G.711A, G.711U, G.729, G.722, G.723, G.726, GSM



Network



  • IPv4,UDP/TCP,DHCP,TELNET,HTTP/HTTPS,TFTP
  • PPTP VPN
  • HTTP/SSH(Optcal Telnet)
  • Ping & Traceroute Command on the Web
  • Simple Security Strategy: white list, black list, security rules





Management

  • Simple and convenient configuration via Web GUI
  • Support maintenance and configuration by SSH
  • Support configuration files backup and upload
  • Support Chinese and English page
  • Firmware Update by HTTP
  • Support Web and SSH login password modification
  • Restore Factory Settings
  • CDR(More than 200,000 Lines CDRs Storage Locally)
  • System log
  • SIP/IAX2 log
  • TCP and SIP capture





Scheda tecnica



  • Tipo - Utilizzo
    Tipo Scheda GSM
