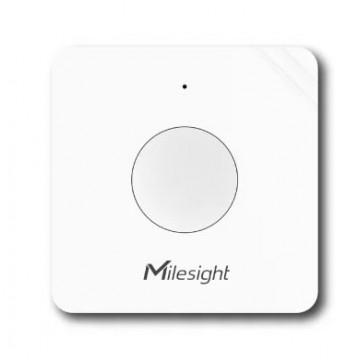

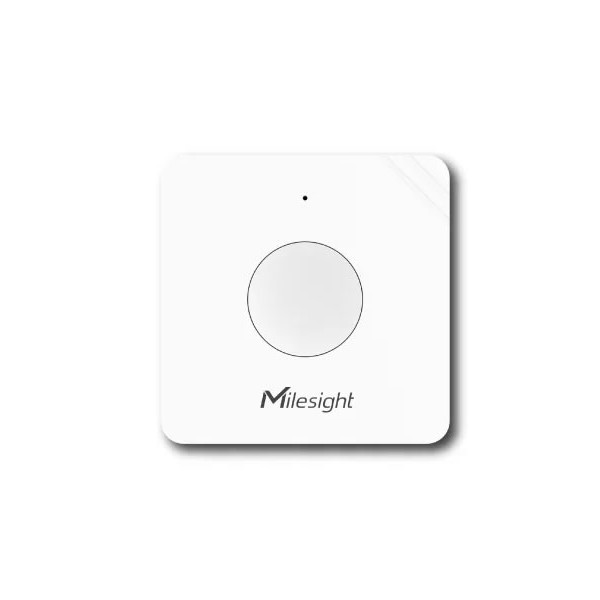

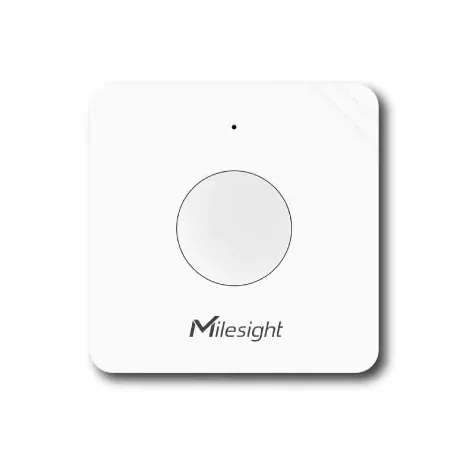

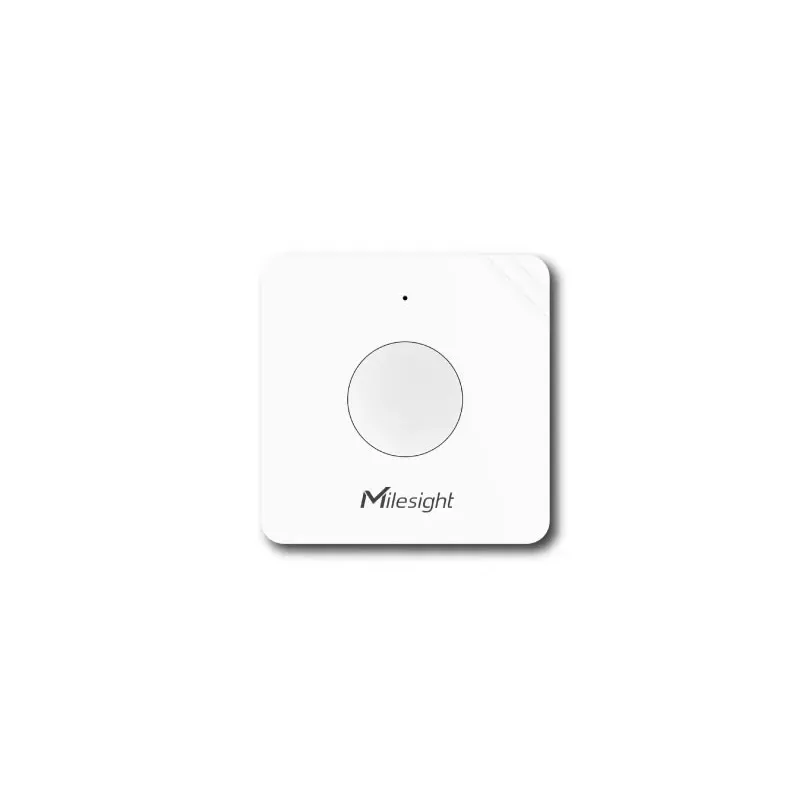

Milesight WS101 LoRaWan Smart Button

Milesight WS101 LoRaWan Smart Button

Milesight WS101 LoRaWan Smart Button è un tasto multifunzione intelligente associabile alle soluzioni LoRaWan Milesight.

In base alla pressione (corta lunga...) può attivare più funzioni di sistema

può essere utilizzato in casa, in ufficio, in strutture sanitarie, aule scolastiche per comunicare allarmi, richieste di supporto, accendere luci, attivare carichi elettrici, segnalatori di emergenza o allarme.

Caratteristiche principali Milesight WS101 smart button LoraWan

• Support multiple press actions to control devices, trigger a scene or send emergency alarms
• Easily to install or carry with the convenient size
• Built-in LED indicator and buzzer for press actions, network status, low battery indication
• Ultra-wide-distance wireless transmission: 15 km in line of sight scene
• Equipped with NFC for one-touch configuration and support card emulation mode
• Support Milesight LoRa D2D protocol to enable ultra-low latency and directly control without gateway

Milesight WS101 Smart Button Featuring  LoRaWAN ®

• Milesight WS101 is a LoRaWAN®-based smart button for wireless controls, triggers and alarms. WS101 supports multiple press actions, all of which can be defined by the user to control devices or trigger scenes.
• Besides, Milesight also provides a red button that is primarily used to send SOS alarms.
• Compact and battery-powered, WS101 is easy to install and carry everywhere.
• Compliant with Milesight LoRaWAN® gateways and Milesight IoT
• Cloud solutions, users can know the alarms and use the WS101 to easily trigger other sensors or appliances remotely via web or mobile Apps.
• WS101 can be widely used in smart homes, smart offices, hotels, schools, etc

Dati tecnici milesight WS101 LoRaWan Smart button

• Function well with standard LoRaWAN® gateways and network servers
• Compliant with Milesight IoT Cloud
• Technology LoRaWAN®, LoRa D2D
• Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
• Sensitivity -137 dBm @300bps
• Mode OTAA/ABP Class A
• Button 1 × External Button + 1 × Reset Button (Internal)
• LED Indicator 1
• Buzzer Support
• Configuration NFC Configuration via Mobile App
• Advanced Feature LoRa D2D Controller
• Power Supply 1 × 1650 mAh ER14335 Li-SOCl2 battery
• Battery Life* Over 5 years (1080 min interval + 10 presses per day)
• Operating Temperature -20°C to +60°C
• Relative Humidity ≤90% (non-condensing)
• Ingress Protection IP30
• Dimension 50 × 50 × 18 mm
• Button: Φ20 mm
• Material Anti-flaming Polycarbonate
• Color White (Button: White/Red Optional)
• Installation On the flat surfaces with screws or 3M tapes, Lanyard
• Approvals: Regulatory CE, FCC, RoHS
  * Tested under laboratory conditions and for guideline purposes only
