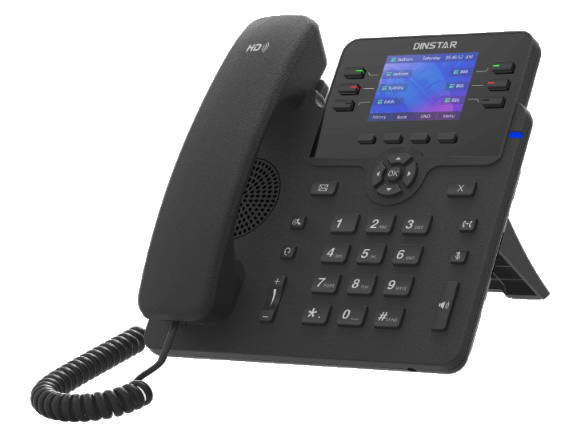

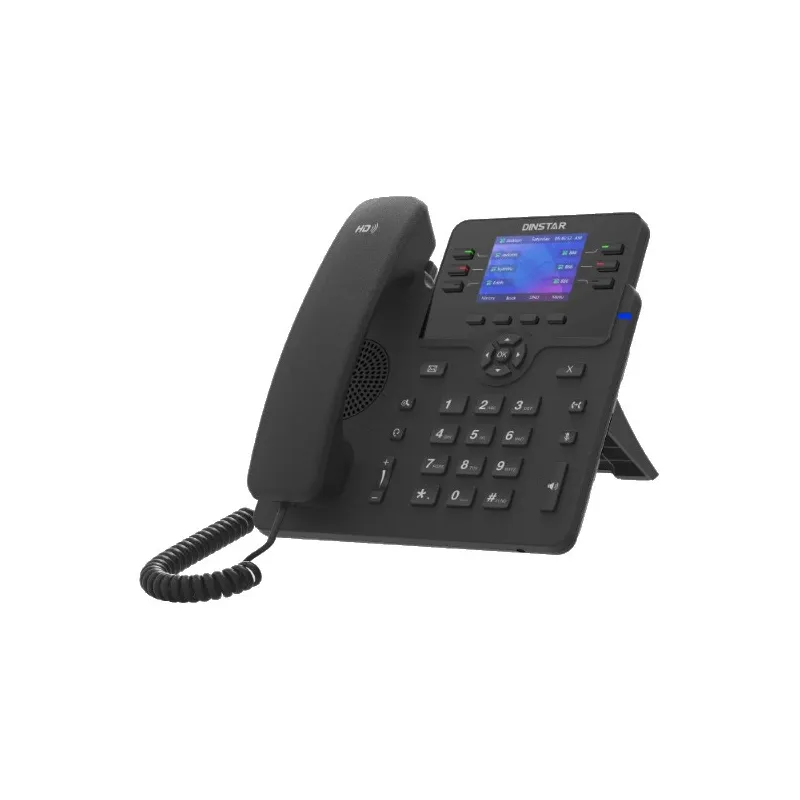

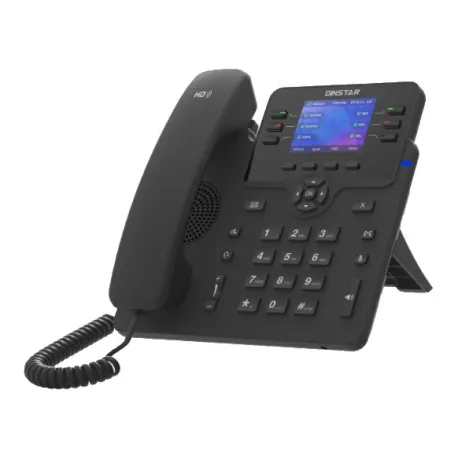

Telefono IP Dinstar C63GP

Telefono IP Dinstar C63GP 30 tasti

il telefono IP Dinstar C63GP è dotato di display a colori, 30 tasti programmabili, 2 porte Gigabit oE

Il telefono Dinstar C63GP, è un terminale con display a colori e fino a 30 tasti configurabili.

Punti di forza del telefono IP  Dinstar C63GP

• Audio  HD
• Gestisce 6 acocunts SIP
• Display a colori 2,8" retroilluminato
• Dual-port Gigabit Ethernet
• Power over Ethernet
• Supporta cavo di sgancio(EHS) per cuffie cordless (Plantronics, Jabra, Sennheiser)
• Supporto con 2 angolazioni
• Compatibile 3CX, Asterisk, Broadsoft, Yeastar, Openvox, Freeswitch, freepbx etc.

Caratteristiche in chiamata

• 6 SIP Accounts
• Chiamata in attesa
• Trasferta cieca e con offerta
• Call hold, Call mute, DND mode
• Speed Dialing
• Hotline
• Redial
• Ritorno di chiamata
• Auto-redial
• Auto-answer
• Dial Plan
• 5-way conference

Audio

• HD Voice
• Wideband Codec: G.722, OPUS-WB
• Narrowband Codec: PCMA, PCMU,G.729, G723, G726, AMR, OPUS, iLBC
• Echo Cancellation/Dynamic Jitter
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Full-duplex Speaker

Funzionalità telefoniche

• Adjustable Voice Volume
• Selectable Ring Tones
• XML Browser
• Action URL/URI
• Keyboard lock
• Phonebook: 1000 Groups
• Blacklist: 200 Groups
• Call Log: 200 Logs
• Support 5 Remote Phonebook URLs
• LDAP
• Support Multiple Languages
• Support EHS wireless headset (Plantronics,Jabra, Sennheiser)

Management

• Auto provisioning:FTP/TFTP/HTTP/HTTPS/PnP
• Configuration via HTTP/HTTPS web
• SNMP,TR069
• Network capture
• NTP/Daylight saving time
• Firmware upgrade via web
• Syslog
• Configuration backup/restore
• Equipment Management System (NMS）

Protocolli

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• SIP over TLS, SRTP
• TCP/IP/UDP
• RTP/RTCP, RFC2198, RFC1889
• HTTP/HTTPS/FTP/TFTP
• ARP/RARP/ICMP/NTP/DHCP
• DNS SRV/ A Query/NATPR Query
• STUN, Session Timer (RFC4028)
• DTMF: In-Band, RFC2833, SIP INFO
• LLDP
• 802.1X, OpenVPN

Caratteristiche fisiche

• Color 2,8  High resolution screen
• Dual-angle foot stand: 40° and 55°
• Input voltage: 5Vdc
• PoE IEEE802.3af
• Handset: 4P4C, RJ9
• Headset: 4P4C, RJ9
• Extended interface: 6P6C, RJ12
• Environmental conditions:
• Operation temperature: 0~40°C
• Humidity: 10% to 95% (non-condensing)
• 2xRJ45 10/100/1000M Ethernet Ports
• Wall Mountable

Alimentatore non incluso

| Sito del costruttore
