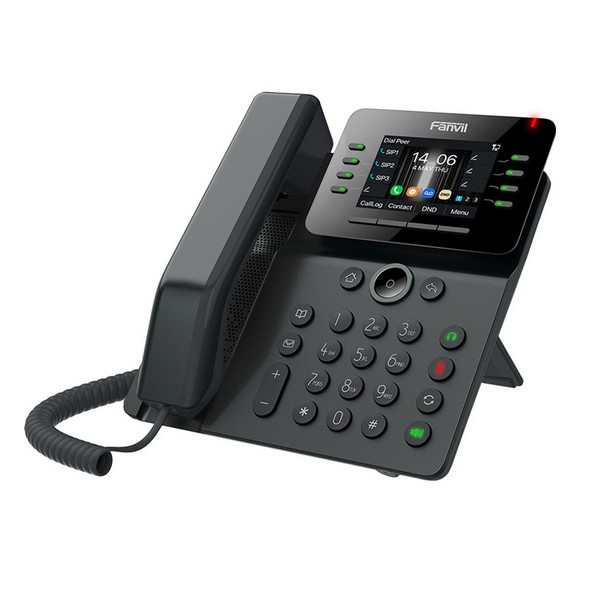

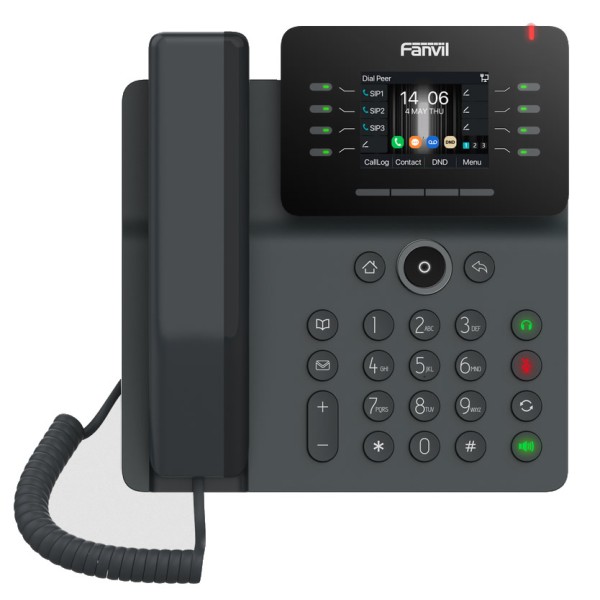

Fanvil V63 21 tasti e porta USB

Fanvil V63 telefono VoIP con 21 tasti programmabili

Il fanvil V63 è un telefono IP con 7 tasti su 3 pagine (tot 21 tasti) programmabili, display a colori, 2 porte PoE Gigabit, porta USB

Fanvil V63 è un telefono VoIP ideale per postazioni di lavoro in cui è richiesto di poter gestire le chiamate interne ed esterne in modo semplice e intuitivo.

I 21 tasti programmabili del Fanvil V63, permettono di visualizzare lo stato della risorsa abbinata (interno, servizio etc) per poter gestire velocemente le chiamate le trasferte, il richiamo di servizi di sistema.

Una linea essenziale ed elegante, come il resto della gamma Fanvil V6 (V64, V65, V67).

Fanvil V63 è interoperabile con tutte le piattaforme in cloud e centralini hardware (on premise).

Autoprovisioning su molti sistemi VoIP.

E' possibile utilizzare una cuffia con filo o cordless di  varie marche (Ezdirect, Jabra, Poly, Epos...)

L'utilizzo della cuffia telefonica permette di avere le mani libere e una postura corretta.

Con le cuffie cordless, è anche possibile spostarsi senza perdere i contatti con clienti e colleghi.

Caratteristiche principali del telefono IP Fanvil V63:

• Porta USB-A
• 6 linee SIP
• 7 tasti funzione programmabili su 3 pagine (21 totali)

• HD audio
• Display a colori
• Supporta EHS (cavo di sgancio elettronico per cuffie cordless)
• Dual Gigabit ports
• PoE
• Audioconferenza
• Compatibile con le piattaforme cloud, centralini software e centralini hardware più diffusi: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, YEastar, Openvox...
• Opzione: Alimentatore 5v


Phone Features

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/out/missed, 1000 entries)
• Blocked List/Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Bluetooth headset (Via BT dongle BT20)
• Support Wi-Fi Dongle (Via WF20)
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording(through server)
• Action URL / Active URI
• uaCSTA
• Dial Plan
• SIP Hotspot
• Multicast
• Action Plan
• Group listening

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz
• Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Call Features

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• BLF
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 6-way Conference
• Hot Line
• Hotdesking

Network

• Physical: 10/100/1000 Mbps Ethernet
• dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLSl
• RTP/RTCP/SRTP
• STUN
• DHCP
• CDP
• LLDP
• PPPoE
• 802.1x
• OpenVPN
• SNTP  FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Color display
• 8 DSS keys with LED indicator light
• 6 Function keys (Contact, Hold, MWI, Mute, Headset, Redial)
• 4 Soft-keys
• 4 Navigation keys
• 1 OK key
• 1 Return key
• 12 Standard Phone Digits keys
• 2 Volume Control keys, Up/Down
• 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5.E Ethernet Cable x1
• Desk Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Security lock port x1
• Power: DC5V/1A or PoE
• Working Temperature: 0~45℃l Working Humidity: 10~95%
• Installation: Desktop Stand, Wall-mounted (need an additional wall hanging parts)
• Color: Gunmetal
