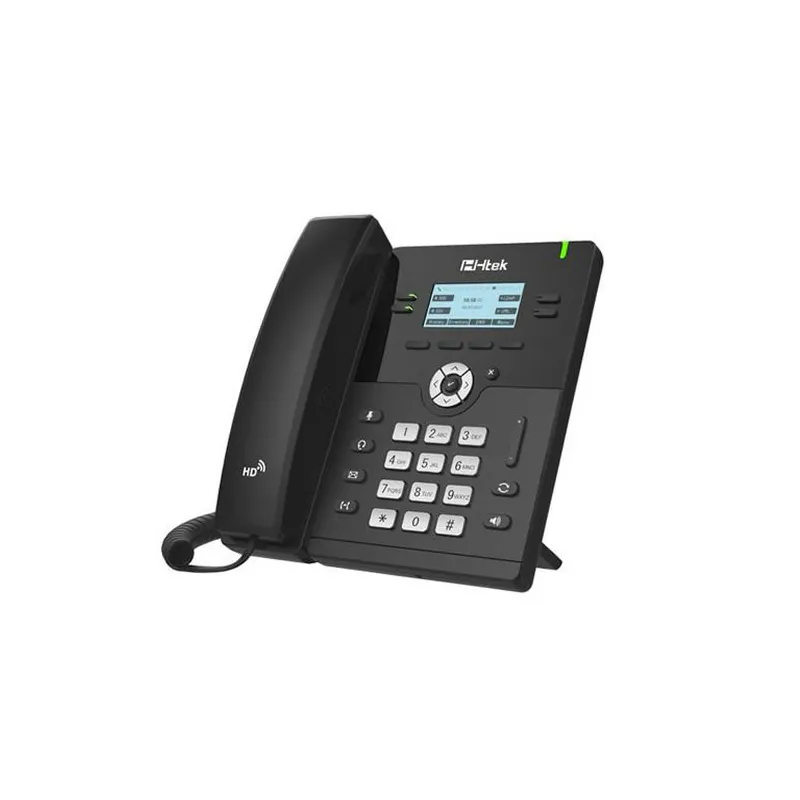

Htek UC912P VoIP phone 2 porte LAN PoE 10/100 2 sip accounts
Il telefono Htek UC912P è un terminale SIP standard con 2 porte Ethernet 10/100 Power over ethernet.
Htek UC912P è la versione con 2 porte di rete 10/100 (anziche Gigabit, presenti nella versione UC912G)
Il nuovo terminale della famiglia Htek UC, si aggiunge alla gamma di telefoni Htek per fornire un catalogo ricco di soluzioni per le postazioni di lavoro di utenti, connessi a centralino VoIP o a linee IP SIP fornite da IP provider.
Sotto le caratteristiche tecniche del telefono Htek UC912P
DIsplay e LEDs
- 192x64 pixel graphical LCD with backlight
- LED for call and message waiting indication
- Illuminated LEDs for line status information
- Intuitive user interface with icons and soft keys
- National language selection
- Caller ID with name, number
Funzioni telefoniche Htek UC912P
- 2 SIP accounts
- Call hold, mute, DND
- One-touch speed dial, hotline
- Call forward, call waiting, call transfer
- Redial, call return, auto answer, direct IP call,
- 5-way conference
- Group listening, SMS, emergency call
- Ring tone selection/provisioning
- Set date time automatically or manually
- Dial plan per account
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
- Action URL/URI Busy Lamp Field (BLF), bridged Line Appearance(BLA)
- Anonymous call, anonymous call rejection
- Message Waiting Indicator (MWI) , voice mail
- Call park, call pickup
- Intercom, paging
- Music on hold
- Hot-desking
Codecs
- HD voice: HD handset, HD speaker
- Codecs: iLBC, G.722, G.711(A/μ),
- GSM_FR, G.723, G.729AB, G.726-32
- DTMF: In-band, RFC 2833, SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, AGC, CNG, AEC, PLC, AJB
Rubrica
- Local phonebook up to 1000 entries
- XML/LDAP remote phonebook
- Intelligent search method
- Phonebook search/import/export
- Call history: dialed/received/missed/forwarded
- Black list
Collegamenti - Interfacce Htek UC912P
- 2 porte LAN 10/100
- Power over Ethernet (IEEE 802.3af), class 2
- 1xRJ9 (4P4C) handset port
- 1xRJ9 (4P4C) headset port
Sicurezza - Rete
- SIP v1 (RFC2543), v2 (RFC3261)
- SIP server/proxy redundancy
- NAT Traversal: STUN mode
- DHCP/static/PPPoE/IEEE802.1X/open VPN
- HTTP/HTTPS web server
- Time and date synchronization by SNTP
- DNS-NAPTR/DNS-SRV(RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
- TLS(Transport Layer Security), SRTP
- HTTPS certificate manager
- AES encryption for configuration file
- Digest authentication using MD5/MD5-sess
Tasti funzione di Htek UC912P
- 4 line keys with LED
- 4 line keys can be programmed up to
- 12 various features (4-page view)
- Illuminated speaker key/headset key/mute key
- 4 context-sensitive “soft” keys
- 6 navigation keys, volume control keys
- Illuminated speaker key/headset key/mute key 6 features keys: voice mail, headset, mute,speaker, transfer, redial
Management
- Configuration: browser/LCD-Menu/auto-provision
- Auto provision via HTTP/HTTPS FTP/TFTP
- Auto-provision with PnP
- Reset to factory, restart, reboot
- Local tracing log export, system log
- Phone lock for personal privacy protection
Per consulenza, supporto all'acquisto e preventivi personalizzati clicca qui.
