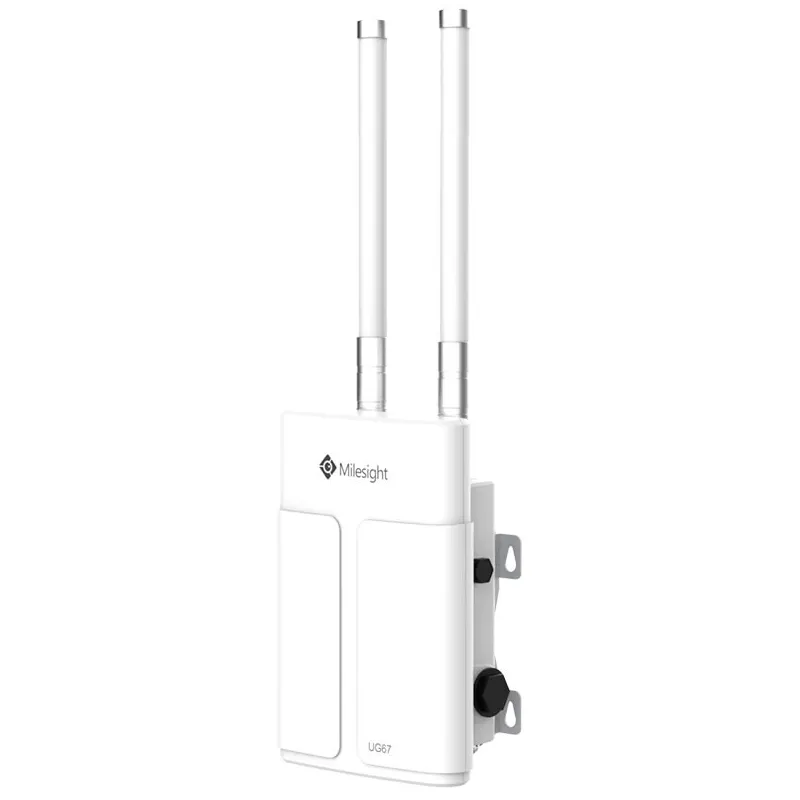

Milesight UG67 LoRaWan Gateway outdoor

Milesight UG67 LoRaWan Gateway outdoor

Il gateway Milesight UG67si basa su tecnologia  LoRaWan.

Milesight UG67 è installabile all'esterno (outdoor) grazie alla protezione IP67.Gestisce 8 canali con supporto fino a 2000 nodi.

Copertura fino a 15 km in campo aperto e fino a 2 km in aree urbane.

Ideale in agricoltura, industria, edifici  di aziende e scuole, idraulica, serre etc... Ovunque sia necessario monitorare e controllare edifici, ambiente, eventi atmosferici, luminosità, umidità e molto altro ancora.

Caratteristiche tecniche principali di Milesight UG67 Gateway LoRaWAN IoT

•  Sistema basato su processore quad-core
• Chip SX1302, con supporto di alto traffico con bassi consumi energetici
• 8 canali half - full-duplex
• Case resistente alle polveri e alle intemperie con protezione IP67
• Design industriale
• Installabile a parete o su palo
• Alimentazione PoE (opzionalmente con alim. solare)
• Avviso di mancata tensione
• Supporta multi backhaul con Ethernet, moble (4G/3G) e Wi-Fi
• Devicehub e Milesight IoT Cloud con gestione centralizzata dei dispositivi e sensori remoti
• Abilita comunicazione di sicurezza con più VPN (IPsec/OpenVPN L2TP PPTP DMVPN)
• Compatibile con server di rete TTN, ChirpStack...
• Server di rete integrato e API MQTT HTTP HTTPS
• SDK Python integrato per lo sviluppo di applicazioni custom

Dettagli tecnici Milesight UG67 loRaWAN Gateway

• CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory 2 GB DDR4 RAM
• Flash 32 GB eMMC
• Extendable Storage 1 × Micro SD Slot, 1 × M.2 NVMe 2280 SSD Interface (512GB SSD Optional)
• Encryption Chip ECC608B
• LoRaWAN -Antenna 2 × Internal Antennas + 2 × 50 Ω N-Female External Connectors
• Channel 8 (Half/Full-duplex)
• Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Sensitivity -140dBm Sensitivity @292bps
• Output Power 27dBm Max
• Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

• Quad-core NXP industrial processor for high capability applications
• Built-in 2 GB DDR4 RAM and 32 GB eMMC flash for large storage
• Extendable storage via micro SD and SSD slot, reduce the blockchain sync time as well as  increase HNT earning
• Equip with SX1302 chip and support 8 half/full-duplex channels, handing a higher amount of traffic with lower power consumption
• Built-in ECC608 crypto chip for high-security authentication and reliable Helium network connectivity
• 5dBi or better high-gain antenna for best network coverage
• IP67 waterproof enclosure and industrial design for harsh environment applications

• Wall or pole mounting (optional)
• Capacitor for sending alarms in case of power failure
• Set up Helium network with easy steps
• Support Helium and other network server connections at the same time
• DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
• Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
• Detect and analyze the noise level and provide an intuitive diagram for deployment
• Embedded Python SDK for user secondary development
• Fast and user-friendly programming by Node-RED development tool
