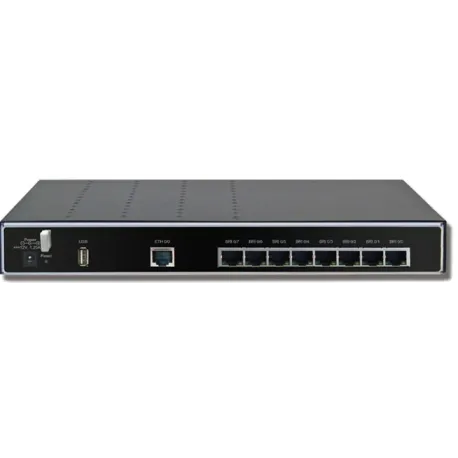

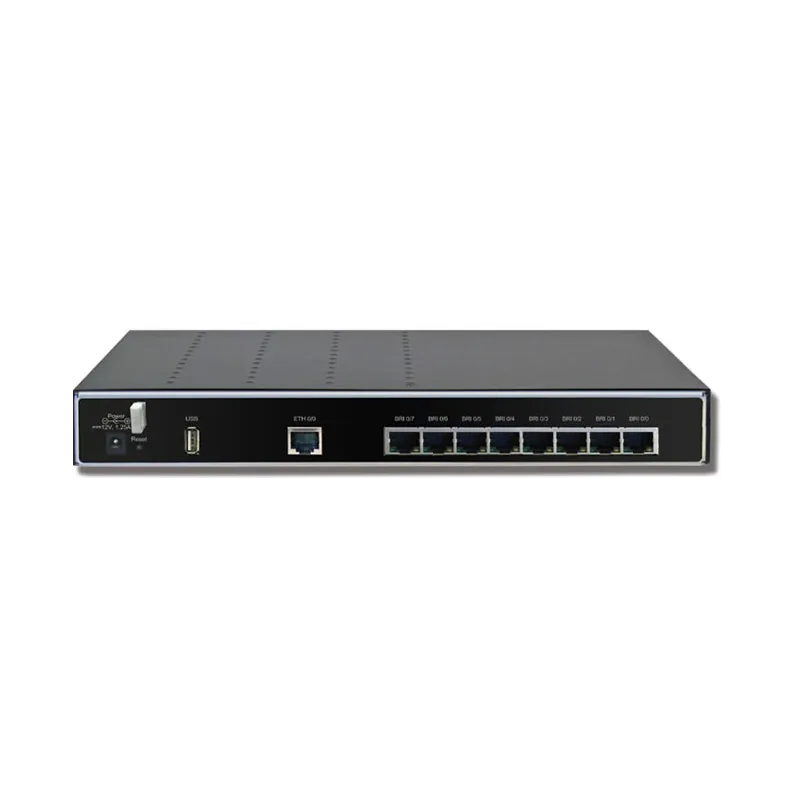

Patton SN4131/2ETH8BIS16VHP/EUI 8 bri isdn

Patton SN4131/2ETH8BIS16VHP/EUI VoIP gateway 8 BRI ISDN

Il gateway VoIP Patton SN4131/2ETH8BIS16VHP/EUI supporta fino a 8 BRI ISDN (16 chiamate), High Precision clock, ed è dotato di 2 porte di rete Gigabit.

Descrizione generale gateway VoIP Patton Smartnode SN4131

Virtual interfaces and routing tables provideindustry leading flexibility in call handling programming.

Local call switching, soft fall-back to alternative routes.

Simultaneously connects to multiple SIP services/IP PBXs.

Complete SIP and T.38 Support

Complete VoIP support:

SIPv2, SIPv2 overTLS, T.38 fax, fax and modem handling,DTMF relay. HD voice codecs

Easy Management & Provisioning

WebWizard, HTTPS zero touch provision-ing, SNMP, command line interface.

Automated mass provisioning for efficientlarge-scale deployments.

Security & VoIP Quality

Open-VPN, IPSec, TLS, fraud prevention & protection, stateful Firewall DSCP, ToSDiffserv labeling, PacketSmart, Network Assessment & Monitoring

Optional eSBC upgrade for BRI - Gateways with 2 Ethernet Ports

Models containing ”SN4131/2ETH” can beconverted into high performance enterprisesession border controllers (eSBC) simply bypurchasing a software license.

This capabil-ity prepares your voice network for next-generation SIP services and security.For details about the upgraded SN4131eSBC’s capabilities, refer to the modelSN5530 eSBC specifications.

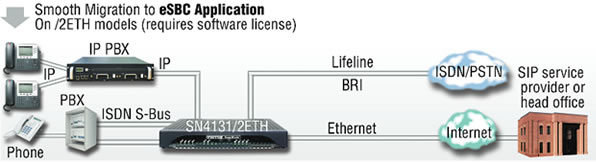

Network Integration

The SmartNode 4130 provides excellent VoIP and security features for seamlessnetwork integration.

All BRI ports are configurable to be TE or NT, you can thusconnect your telco line(s) as well as a PBX or ISDN terminals.

Terminals are powered with the built-in power supply, eliminating the need for anexternal box.

For business class IP telephony at the tip of your fingers, theSmartNode 4130 is more than just talk!

Caratteristiche tecniche Patton SN4131/2ETH8BIS16VHP/EUI

• 2 porte di rete Gigabit
• High Precision clock
• DHCP server
• 1 porta USB
• 8 BRI ISDN
• 16 canali voce
• Protocollo: Telnet, TFTP, HTTP, HTTPS, SNMPv3
• Alimentazione: 100-240VAC, 10W
• Dimensioni: 374,6 x 260,35 x 95,25 mm
• Peso: 1,24 kg.
• EN 60950, TBR-3
• Certificazioni:FCC Part 15, CE
