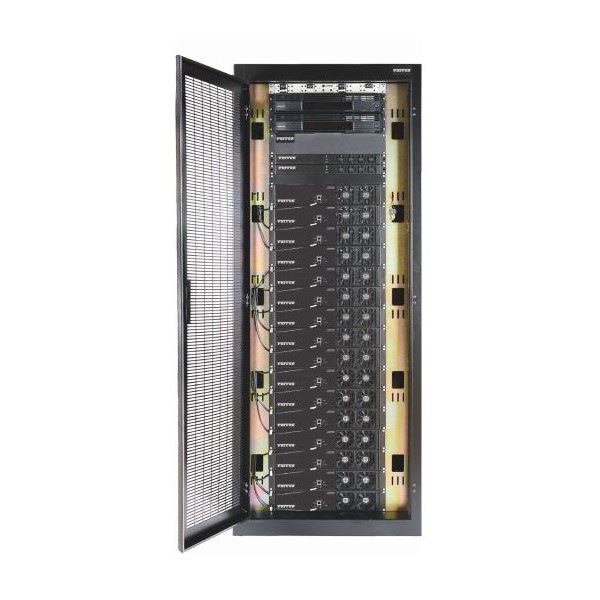

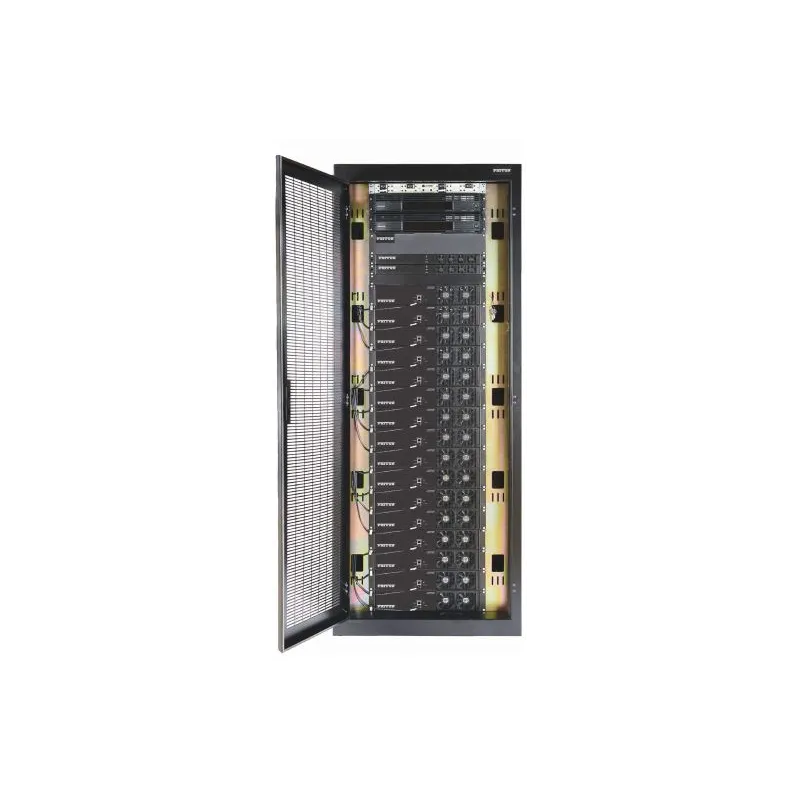

Patton SN10300/64E/RUI TDM+VoIP Smartmedia gateway 64 E1

Patton SN10300/64E/RUI TDM+VoIP Smartmedia gateway 64 E1

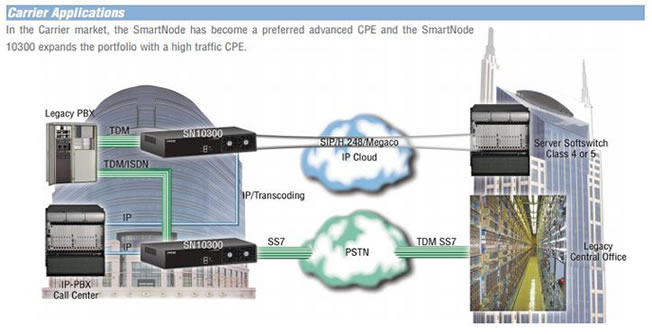

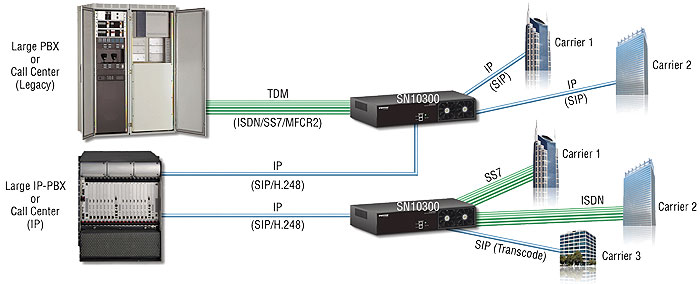

Patton SN 30100 è la serie di  " TDM + VoIP smartmedia gateway" di Pattton per grandi utenze e carrier, quindi ad alta densità.

Capacity and voice processing:
VoIP channels

• 512 to 32,768

PSTN interfaces

• 1 to 16OC3/STM1** with APS (automatic protectionswitching)
• 1 to 48 DS3
• Dual RJ48C for BITS or T1/E1 for signaling

VoIP interfaces

• Dual 100/1000Base-T: RJ45 connectors on rear of unit

Vocoding

• Universal codecs: G.711,G.723.1, G.726, G.729ab, T.38
• Other codecs: G.722.2 (AMR-WB), G.728, G.729eg, iLBC, clear mode (RFC 4040)

Fax/Modem/Data

• T.38 fax relay (V.17and V.34)
• Automatic G.711 fallback
• Modem and data pass-through

DTMF relay

• RFC 2833, SIP INFO
  Method, In-band
  Echo cancellation
• G.168 echo cancellation: 128 ms echo tail on all channels simultaneously

Voice processing

• Dynamic and programmable jitter buffer (20 to 200 ms)
• Voice activity detection (VAD) Comfort noise generation (CNG)

Management interfaces

• Dual: 100/1000Base-T for OAM&P

Simultaneous signaling support
SIP

• Supported RFCs: 2327, 2976, 3261, 3262, 3263, 3264, 3311*, 3323*,3325*, 3398, 3515*, 3578*, 3764,3891, 4028 (*partial compliance)

SIGTRAN

• M2PA, M2UA, M3UA, IUA
• SS7 termination and/or relay supported

SS7

• Up to 64 x MTP2 links (56, 64, nx 56/64 kbps, HSL)
• Multiple redundant MTP2 links
• Up to 64 MTP3 originating point codes and linksets
• ISUPvariants: ITU 92, ITU 97, ANSI 88, ANSI92, ANSI 95, Telcordia 97, ETSIv2,ETSIv3, China, Singapore, UK Brazil

ISDN PRI

• Q.931 ISDN PRI: NI-2,4ESS, 5ESS, DMS-100, DMS-250, EuroISDN ETSI NET5 (France, Germany, UK,China, Hong Kong, Korea), NTT (Japan), Australia

CAS

• MFC R2 (standard ITU, Brazil) Customizable protocol script files

• ITU-T H.248 versions 1 and 2
• UDP, SCTP, IPsec transport
• DTMF and fax detection
• DTMF, announcements and call progress tone generation
• Call quality and inactivity alerts

Session management and billing

• SIP peer availability polling
• RTP inactivity monitoring
• CDR generation (RADIUS and text file)

OAM&P

• Operation & Administration
• Webbased
• system status and operations SNMP v2/v3 GET, TRAPs and alarms
• Dynamic configuration changes aintenance
• Web-based interface for maintenance
• Automated systemupgrade
• System backup, restore and copy

Provisioning

• Web-based interface for configuration
• Dynamic activation Troubleshooting—Per-call tracing (history and/or live)
• Signalling capture tools
• SSH command-line interface

Electrical characteristics

• Power input—90 to 260 VAC, 47 to 63 Hz
• -40 to -60 VDC
• Redundant power supply with dual power inputs

Physical characteristics

• Dimensions—4U to 39U VoIP Gateway
• Each 2U is 3.5H x 17.4W x 16D in. (88.9H x 442W x 406D mm)
• Weight—20 lbs (9.1 kg)

Regulatory compliance

• UL/CSA 60950, CSA C22.2—EMC: FCC Part 15:2009, Subpart B, CE Mark (EN55022:2006, Class A, EM60950,
• EN61000, ETS 300 386)

Environmental

• Operating temp— 0 to +55 °C • 95%
• relative humidity, non-condensing
• Storage temp— -10 to +75 °C, 95%
• relative humidity, non-condensing
• NEBS Level 3 compliant
• RoHS compliant

* Specifications subject to change without notice. **N + 1 redundancy available for OC3/STM1 configuration only.
