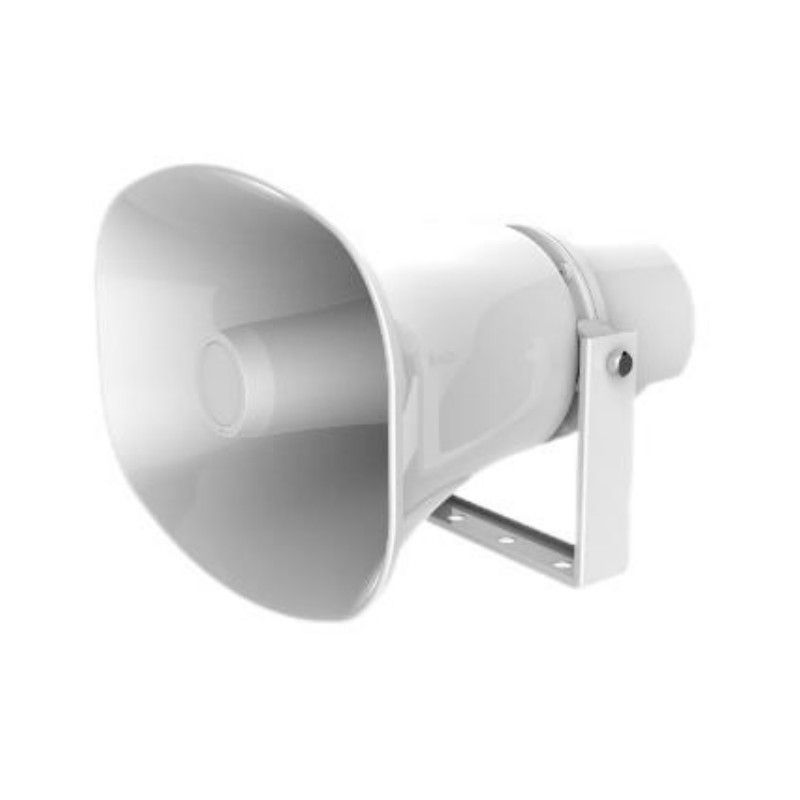

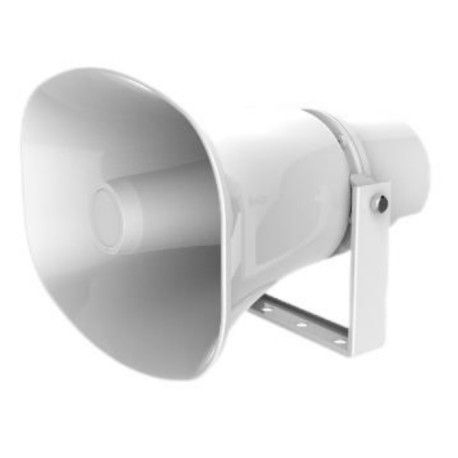

Fanvil A233 SIP horn speaker (altoparlante a tromba)
Fanvil A233 è un altoparlante a tromba da 20W PoE, utilizzabile con sistemi IP di terze parti e P.A. Fanvil. Microfono integrato - Protezione IP66
Il Sip Hor Speaker Fanvil A233 è una soluzione ideale in ogni ambiente servito da un cavo di rete LAN, per l'invio di messaggistica vocale, broadcasting, diffusione musica etc.
Abbinandolo ad altri dispositivi Fanvil come il telefono A308i e A320i, è possibile gestire chiamate a zone fino a 50 sip speaker contemporaneamente, inviare messaggi programmati a tempo e personalizzati, diffondere messaggi commerciali, di servizio o di emergenza.
L'altoparlante a tromba Fanvil A233 è interoperabile con tutti i centralino hardware, software e virtuali basati su protocollo SIP standard, come ad esempio Yeastar, openvox, 3CX, freepbx etc...
Caratteristiche principali Fanvil A233
- Amplificatore e speaker integrati
- G.722 e OPUS
- Potenza 30W
- Amplificatore classe D
- Supporta configurazione da remoto
- Auto provisioning
- Porta di rete 10/100 PoE 802.3af classe 0
- IP66
- Microfono integrato
- Messaggi personalizzabili
- Messaggi calendarizzabili
Per sistemi audio di potenza superiore contatta il nostro staff.
Basic Functions
- 2 SIP lines
- U-bracket installation
- 8Ω 15W speaker (in PoE+ 30W con alim.re 24V 2A))
- Built-in microphone, support monitoring, self-test, intercom application
- Support HD voice, using G.722 and Opus encoding
- Support lossless sound quality broadcasting, MP3 and Wav encoding
- Support 20 multicast partitions
- Built-in 24MB audio file storage space, support scheduled task broadcast
- Customize audio files for emergency notification and alarm
- 1 short circuit input detection, 1 short-circuit output, linkage security alarm device
- Support external IP camera video linkage
- Support Web remote adjustment volume
- Support PoE/PoE+ power supply or DC24V/2A power supply
- adaptive 10/100 Mbps network port
Device Functions
- Default auto answer (Auto-answering)
- Network time synchronization
- Remote volume adjustment
- Dynamic multicast function
- Action URL / Active URI
Audio
- Audio codecs: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K, G.722, Opus
- DTMF: In-band, out-of-band (RFC2833/SIP INFO)
- Speaker:➢ Frequency response: 350~7.5KHz, ➢ Sensitivity: 107±3dB, (1m/1W),➢ Impedance: 8Ω, ➢ MAX SPL: 120dB(1m/30W), ➢ Speaker power
- PoE: 8W
- PoE+: 15W
- DC 24/2A: 30W
- Mic Omnidirectional microphone Sensitivity: -38±3dB, impedance 2.2k ohm, bias voltage 2V
Network
- 10/100 Mbps
- Network mode: IPv4/IPv6/IPv4&IPv6
- IP Setting: Static IP / DHCP / PPPoE
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
Physical Specifications
- DC 24V/2A port×1 circular DC power jack
- RJ45 port×1: connect the Internet or LAN
- Short circuit input port×1
- Short circuit output port×1 Max support: 30V/2A Terminal socket
- Working temperature: -20℃~ 55℃
- Storage temperature: -40℃~ 70℃
- Working humidity: 10~95%
- Installation: U-bracket installation
- Color: White
- Device overall dimensions: 285mm X 285mm X 205mm
- Support PoE power supply (IEEE 802.3at, class 4)
- IP66
