Sennheiser XSW1 835 con 1 microfono wireless

Sennheiser XSW1 835 con 1 microfono wireless

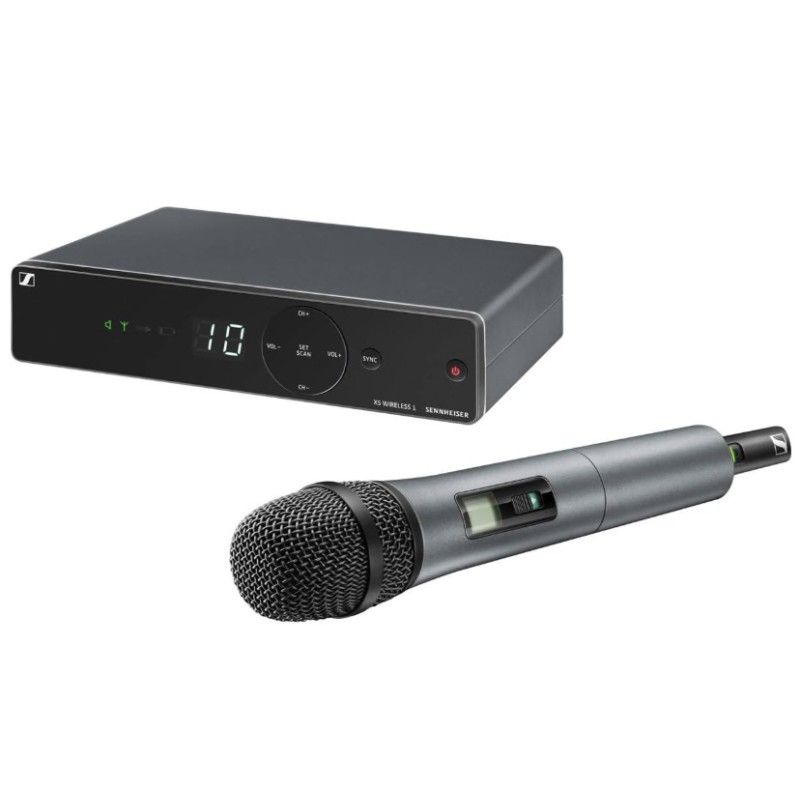

Sennheiser XSW1 in kit con 1 microfono wireless

Kit Composto da Sennheiser XSW1, 1 microfono gelato wireless, per utilizzo in parlato e canto.

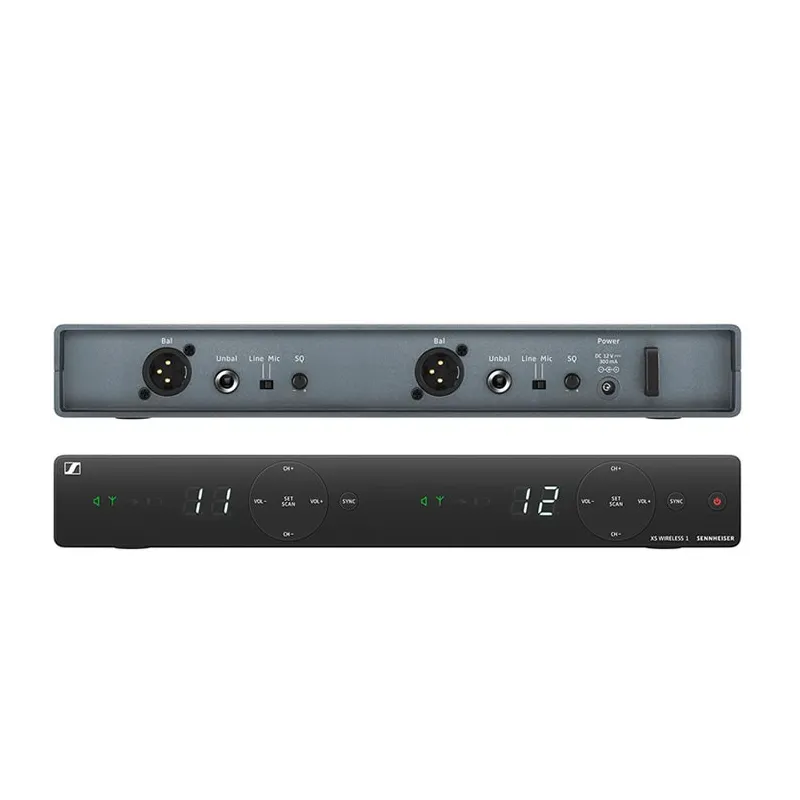

Sennheiser XSW1 835 Dual con 1 microfonoa mano wireless - Dettagli

• THD, total harmonic distortion:     ≤ 0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio:   ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth:  up to 24 MHz
• Operating time:approx. 10 hrs
• Modulation:wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: rugged ABS housing
• Dynamic range:dynamic
• Frequency:  8 frequency banks, each with up to 10 factory-preset channels

Frequency range

•     A: 548-572 MHz, GB: 606-630 MHz
•     B: 614-638 MHz
•     C: 766-790 MHz
•     D: 794-806 MHz
•     E: 821-832 MHz, 863-865 MHz
•     K: 925-937.5 MHz

Altri dettagli tecnici:

• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch:adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity 1.5 mV / Pa
• Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range 45 dB, adjustable in 5-dB steps
• Line / Mic level 20 dB, switchable
• Temperature Range:operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle:double superheterodyne
• Diversity principle:Antenna switching diversity via internal antennas

RICEVITORE: Power supply Receiver: 12 V DC nom. / 300 mAAF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)

MICROFONO:Weight, 245g Power supply Microphone: 2 AA size batteries, 1.5 V

Confezione:

•     1 receiver EM-XSW
•     1 x microfono a mano
•     1 x microphone clamp MZQ 1
•     1 power supply NT 12-5 CW
•      AA batteries

 Distanza minima da trasmettitore a ricevitore 5 metri.
