Openvox iAG200-OS adattatore voip analogico 1 fxo + 1 fxs

Openvox iAG200-OS adattatore voip analogico 1 fxo + 1 fxs

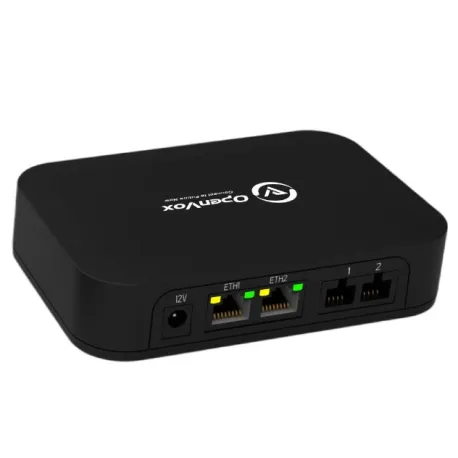

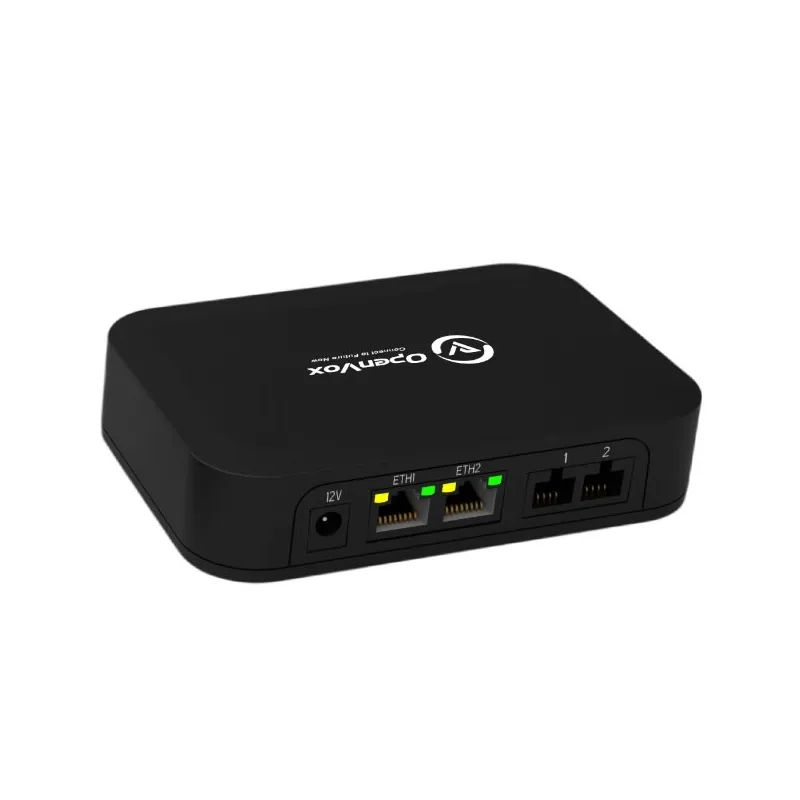

Descrizione dell'adattatore voip Openvox iAG 200 1 fxo e 1 fxs gateway serie iAG200 iAG400

Il gateway VoIP Openvox iAG 200 permette di convertire una linea IP (o SIP extension) in analogico e una linea analogica ( o interno analogico di un centralino) in IP.

Sfrutta il protocollo standard SIP, quini è compatibile con tutti i centralini hardware (on premise) o virtuali basati su questo  standard (asterisx, freeepbx, freeswitch etc).

Utilizzabile per utilizzare un alinea  analogica su un centralino IP (come ad esempio i sistemi yeastar Openvox, Gigaset FX800W etc)

Allo stesso modo convertendo un interno IP del centralino, permette di utilizzare un fax o un telefono analogico, oppure collegare un'interfaccia citofonica analogica etc.

Le 2 porte LAN 10/100 permettono di utilizzare un unico cavo di rete, qualora ci sia la necessità di collegare sullo stesso cavo anche un'altro dispositivo, come ad esempio un PC.

Series Analog Gateway, a new product of the iAG Series, is specially designed for  SMBsand SOHOs.

With friendly GUI and unique modular design, users may easily setup their customized gateway.

Also secondary development can be completed through AMI (Asterisk Management Interface).

The iAG200/400 Series Analog Gateways are developed for interconnecting a wide selection of codecs including G.711A, G.711U, G.729A, G.722, G.726, iLBC. iAG200/400 use standard SIP protocol and compatible with
leading VoIP platform, IPPBX and SIP servers, such as Asterisk, Issabel, 3CX, FreeSWITCH ,BroadSoft and VOS VoIP operating platform

Performance and Features

● 1 fxo + 1 fxss
● Stable function, flexible dialplan and friendly Web GUI

Designed for SME and SOHO users
● Fully Compatible with leading SIP based VoIP Telephony System

System Features
● NTP time synchronization and client time synchronization
● Support modify username and password for web login
● Update firmware online, backup/restore configuration file
● Abundant Log Info, Automatically Reboot, Call status display
● Language selection (Chinese/English)
● Open API interface (AMI), support for custom scripts, dialplans
● Support SSH remote operation and restore the factory settings Telephony Features
● Support Volume adjustment, Gain adjustment, call transfer, call hold, call waiting, call forward, Caller ID display
● Three way calling, Call transfer, Dial-up matching table
● Support T.38 fax relay and T.30 fax transparent, FSK and DTMF signaling
● Support Ring cadence and frequency setting, WMI (Message Waiting Indicator)
● Support Echo cancellation, Jitter buffer
● Support customizable DISA and other applications SIP Features
● Support add, modify & delete SIP Accounts ,batch add, modify & delete SIP Accounts
● Support multiple SIP registrations : Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint
● SIP accounts can be registered to multiple servers

Network
● Network type：Static IP, Dynamic
● Support DDNS, DNS, DHCP, DTMF relay, NAT
● Telnet, HTTP, HTTPS, SSH
● VPN clients：PPTP/OpenVPN/Zerotier/L2TP/N2N（Not available for Russia）
● Network Toolbox
