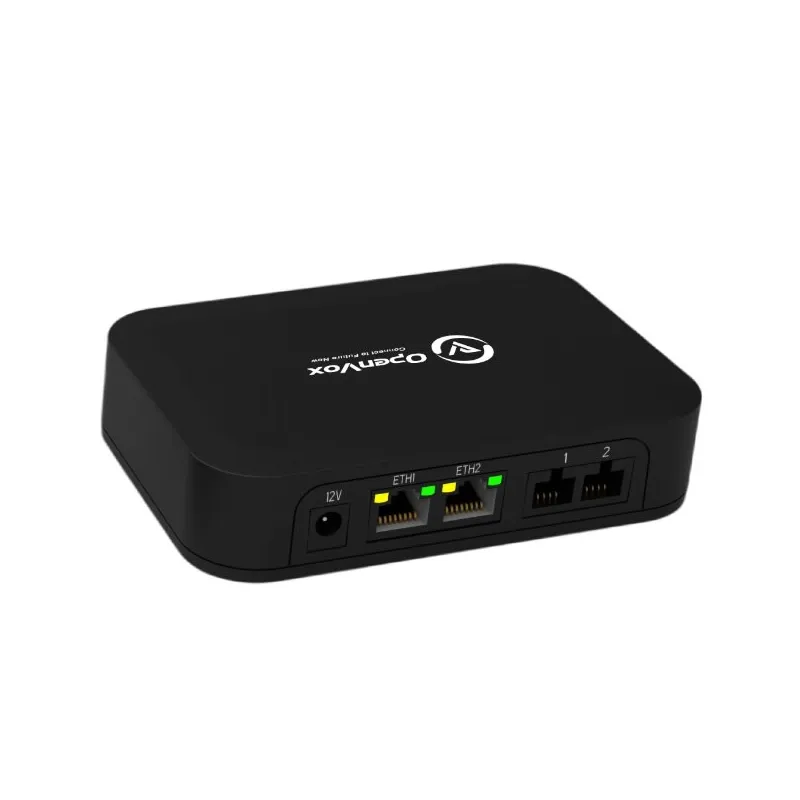

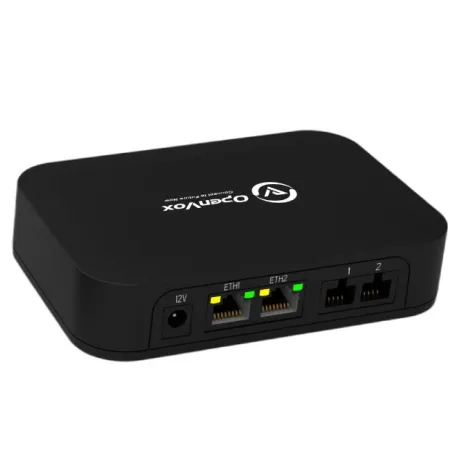

Openvox iAG200-O gateway 2 porte fxo 2 LAN

Codice: iAG200-O    SKU: iAG200-O    EAN: 9506255896876
Openvox

Gateway 2 FXO con 2 porte LAN 10/100

Risparmio € 11,12
Listino: € 139,00
€ 127,88
€ 156,01 iva incl.

Non disponibile Attualmente non disponibile, richiedi quotazione con tempi di consegna qui oppure contatta il nostro staff allo 0585 821163

Condizione: Nuovo

Garanzia: 12 mesi

-
+
  • Dettagli

  • Scheda tecnica

  • Download Download (1)

  • Recensioni


Openvox iAG200-O gateway 2 porte fxo + 2 porte LAN

Descrizione generale gateway serie iAG200 iAG400


OpenVox iAG200/400 è un gateway analogico per gestire 2 linee tradizionali (analogiche, anche derivate da router fibra o NT1 Plus).

Il gateway Openvox iAG200-O è ideale quando si ha un centralino telefonico IP e sono disponibili 1 - 2 linee esterne analogiche.

Il gateway le converte in IP.

Utilizzabile anche per remotizzare 2 linee o 2 derivati analogici in altre sedi.

Le 2 porte LAN 10/100 permettono di utilizzare un unico cavo di rete, qualora ci sia la necessità di collegare sullo stesso cavo anche un'altro dispositivo, come ad esempio un PC.



Series Analog Gateway, a new product of the iAG Series, is specially designed for  SMBsand SOHOs.

With friendly GUI and unique modular design, users may easily setup their customized gateway.

Also secondary development can be completed through AMI (Asterisk Management Interface).

The iAG200/400 Series Analog Gateways are comprised of four models: iAG200-S with 2 FXS ports, iAG200-O with 2 FXO ports, iAG400-S with 4 FXS ports, iAG400-O with 4 FXO ports.

The iAG200/400 Series Analog Gateways are developed for interconnecting a wide selection of codecs including G.711A, G.711U, G.729A, G.722, G.726, iLBC. iAG200/400 use standard SIP protocol and compatible with
leading VoIP platform, IPPBX and SIP servers, such as Asterisk, Issabel, 3CX, FreeSWITCH ,BroadSoft and VOS VoIP operating platform

Performance and Features
● 2 or 4 FXS/FXO ports
● Stable function, flexible dialplan and friendly Web GUI

Designed for SME and SOHO users
● Fully Compatible with leading SIP based VoIP Telephony System

System Features
● NTP time synchronization and client time synchronization
● Support modify username and password for web login
● Update firmware online, backup/restore configuration file
● Abundant Log Info, Automatically Reboot, Call status display
● Language selection (Chinese/English)
● Open API interface (AMI), support for custom scripts, dialplans
● Support SSH remote operation and restore the factory settings Telephony Features
● Support Volume adjustment, Gain adjustment, call transfer, call hold, call waiting, call forward, Caller ID display
● Three way calling, Call transfer, Dial-up matching table
● Support T.38 fax relay and T.30 fax transparent, FSK and DTMF signaling
● Support Ring cadence and frequency setting, WMI (Message Waiting Indicator)
● Support Echo cancellation, Jitter buffer
● Support customizable DISA and other applications SIP Features
● Support add, modify & delete SIP Accounts ,batch add, modify & delete SIP Accounts
● Support multiple SIP registrations : Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint
● SIP accounts can be registered to multiple servers

Network
● Network type:Static IP, Dynamic
● Support DDNS, DNS, DHCP, DTMF relay, NAT
● Telnet, HTTP, HTTPS, SSH
● VPN clients:PPTP/OpenVPN/Zerotier/L2TP/N2N(Not available for Russia)
● Network Toolbo



Scheda tecnica



  • Tipo - Utilizzo
    Tipo Analogico

  • Connessione
    Porte FXO 2
    Quantità canali 2

  • Rete
    Porte LAN 2
    Tipo porta ethernet 10/100

  • Funzioni
    T.38 fax sì

  • Garanzia
    Garanzia costruttore 12 mesi
