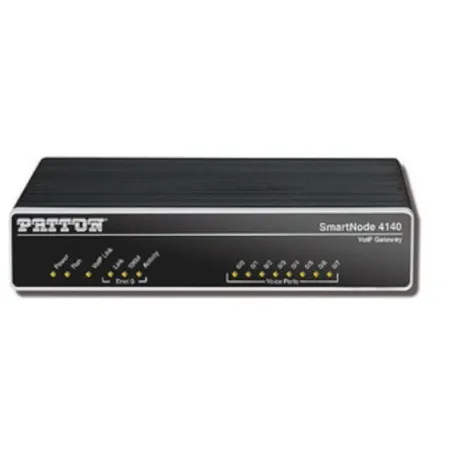

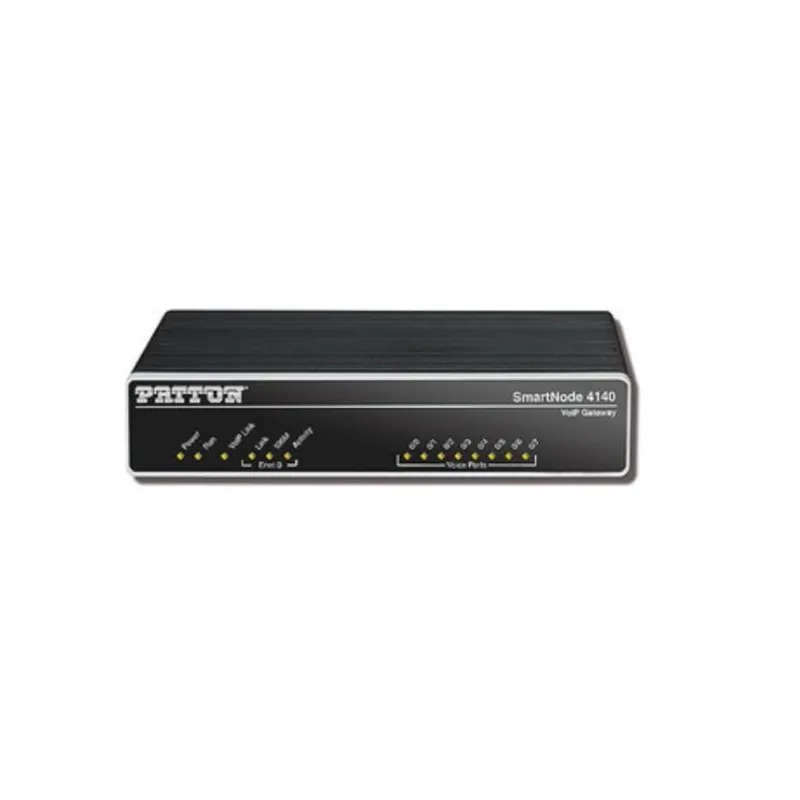

Patton SN4141/4JO4V/EU gateway VoIP 4 fxo

Patton SN4141/4JO4V/EU gateway VoIP 4 fxo

Patton SN4141/4JO4V/EU è un gateway VoIP per gestire 4 linee esterne analogiche e convertile in linee IP SIP, ideale su centralini IP on premise e centralini virtuali.

Patton SN4141/4JO4V/EUI, SmartNode VoIP Gateway, 4 FXO, 4 VoIP calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (max. 200), Optional SIP-TLS/SRTP; Transcoding (max. 4 calls), 1x Gig Ethernet, external UI power (100–240 VAC) NA/EU

Typical Application

In All-IP networks as well as during the migration to the next generation communication network, legacy Telephone equipment will remain for quite some years. The SmartNode 4141 Series will be responsible integrating this equipment at a very low cost for the enterprise. With its modem and fax signal to VoIP conversion capabilities it also helps to solve problems integrating PoS, metering systems, elevator phones, etc., into an All-IP environment.

The SmartNode 4141 Series of VoIP Media Gateways support up to eight phone or fax calls. The SN4141 is the perfect choice for All-IP applications where either old, non-replaceable telephones have to be integrated into a UCC environment, or for good old fax devices to be migrated to the next-generation network infrastructure. Patton’s SmartNode 4141 Series delivers the legacy phone interfaces, service transparency, and flexible integration required for All-IP networks. Visit www.patton.com/smartnode for more information.

Caratteristiche principali serie SN4141

• Up to 8 simultaneous lowbandwidth voice or HD callswith SRTP or T.38 fax calls
• SIPv2 / SIPv2 over TLS (B2BUA capable, multiinstance, simultaneous support of multiple registrars and direct IP dialing)
• SIP call transfer, redirect
• DTMF in-band & out-of-band
• All tones programmable (dial, ringing, busy)
• G.722
• G.711m/A-law
• G.723.1 (6.4 kbps)
• G.729, 729a, 729ab (8 kbps)
• G.726 (16 ,24, 32, 40 Kbps)
• G.168-2004 echo cancellation (128 ms)
• Up to 4 simultaneous lowbandwidth voice or T.38 fax

calls

• Up to 5 HD calls with SRTP
• Up to 256 SIP to SIP calls***
• Up to 4 SIP transcoded calls**
• Silence suppression and comfort noise
• Adaptive and configurable dejitter buffer
