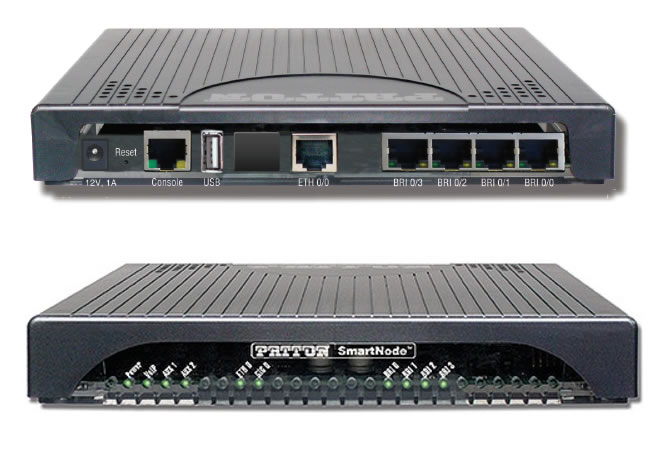

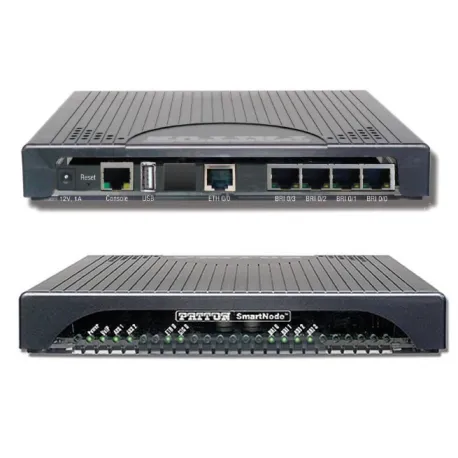

Patton SN4131/2ETH2BIS4VHP 2 bri isdn

Patton SN4131/2ETH2BIS4VHP per 2 BRI ISDN fino a 4 chiamate 2 porte Gigabit

Descrizione generale gateway Patton serie Smartnode SN4131

VoIP gateway con 2 porte di rete Gigabit, high precision clock, 2 bri isdn, fino a 4 chiamate.

Supporto VoIP

SIPv2, SIPv2 overTLS, T.38 fax, fax and modem handling,DTMF relay. HD voice codecs

Virtual interfaces and routing tables provideindustry leading flexibility in call handling programming.

Local call switching, soft fall-back to alternative routes.

Simultaneously connects to multiple SIP services/IP PBXs.

Complete SIP and T.38 Support

Gestione semplice e provisioningg

WebWizard, HTTPS zero touch provision-ing, SNMP, command line interface.

Automated mass provisioning for efficientlarge-scale deployments.

Sicurezza e qualità voIP dei Patton SN4131

Open-VPN, IPSec, TLS, fraud prevention & protection, stateful Firewall DSCP, ToSDiffserv labeling, PacketSmart, Network Assessment & Monitoring

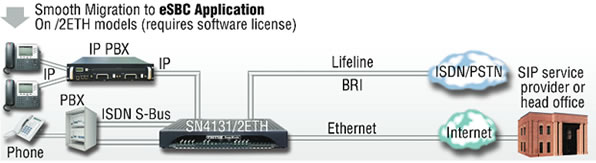

Optional eSBC upgrade for BRI - Gateways with 2 Ethernet Ports

Models containing ”SN4131/2ETH” can beconverted into high performance enterprisesession border controllers (eSBC) simply bypurchasing a software license.

This capabil-ity prepares your voice network for next-generation SIP services and security.For details about the upgraded SN4131eSBC’s capabilities, refer to the modelSN5530 eSBC specifications.

Integrazione rete

The SmartNode 4131 provides excellent VoIP and security features for seamlessnetwork integration.

All BRI ports are configurable to be TE or NT, you can thusconnect your telco line(s) as well as a PBX or ISDN terminals.

Terminals are powered with the built-in power supply, eliminating the need for anexternal box.

 Caratteristiche tecniche Patton SN4131/2ETH2BIS4VHP

• 2 porte Ethernet 10/100/1000 con auto MDI-X.
• 2 BRI ISDN punto punto - punto multipunto (P/P - P/MP)
• 4 chiamate simultanee

• Codec vce: G.711, G.723, G.729, G.722, G.726 con Echo Cancellation
• T.38 fax
• Protocollo: Telnet, TFTP, HTTP, HTTPS, SNMPv3
• Supporta protocolli VoIP
• High Precision Clock
• DHCP server
• Porta USB 2.0
• Supporta TLS/SRTP ma necessaria licenza aggiuntiva.
• Alimentazione: 100-240VAC, 10W
• Dimensioni: 190,5 x 260,35 x 95,25 mm
• Peso: 960 gr
• EN 60950, TBR-3
• Certificazioni:FCC Part 15, CE

Come ogni Trinity SmartNode, il SN4131 è dotato di una procedura WEB guidata per una configurazione veloce e facile.
