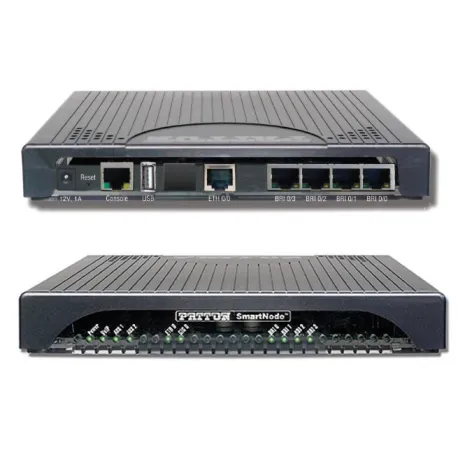

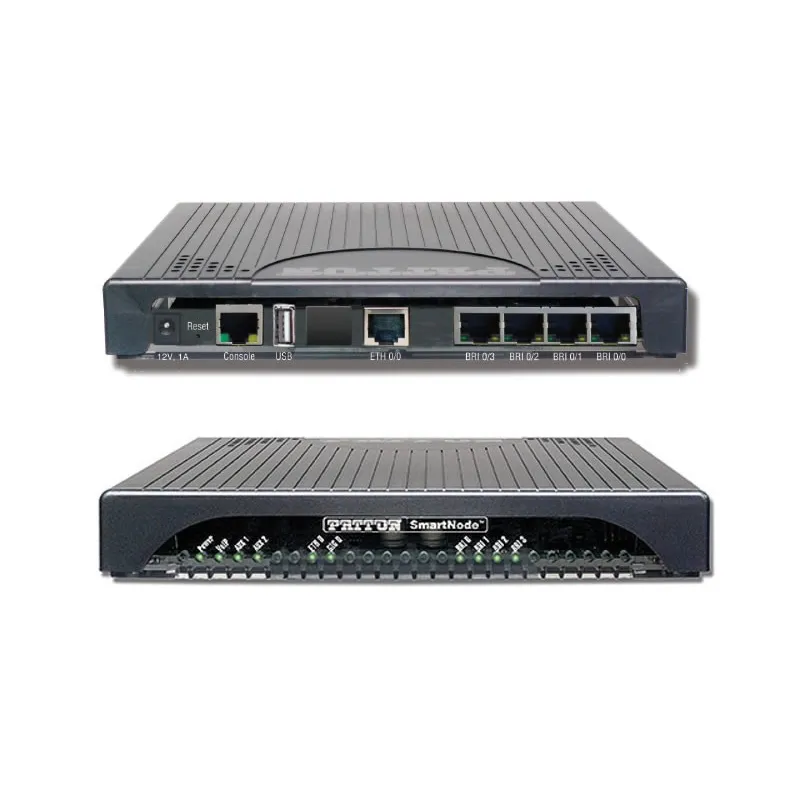

Patton SmartNode sn4131 SN4131/4BIS8VHP/EUI

Patton SN4131/4BIS8VHP/EUI 4 BRI ISDN 8 canali

Descrizione generale Patton Smartnode SN4131

Complete VoIP support:

SIPv2, SIPv2 overTLS, T.38 fax, fax and modem handling,DTMF relay. HD voice codecs

Virtual interfaces and routing tables provideindustry leading flexibility in call handling programming.

Local call switching, soft fall-back to alternative routes.

Simultaneously connects to multiple SIP services/IP PBXs.

Complete SIP and T.38 Support

Easy Management & Provisioning

WebWizard, HTTPS zero touch provision-ing, SNMP, command line interface.

Automated mass provisioning for efficientlarge-scale deployments.

Security & VoIP Quality

Open-VPN, IPSec, TLS, fraud prevention & protection, stateful Firewall DSCP, ToSDiffserv labeling, PacketSmart, Network Assessment & Monitoring

Optional eSBC upgrade for BRI - Gateways with 2 Ethernet Ports

Models containing ”SN4131/2ETH” can beconverted into high performance enterprisesession border controllers (eSBC) simply bypurchasing a software license.

This capabil-ity prepares your voice network for next-generation SIP services and security.For details about the upgraded SN4131eSBC’s capabilities, refer to the modelSN5530 eSBC specifications.

Network Integration

The SmartNode 4131 provides excellent VoIP and security features for seamlessnetwork integration.

All BRI ports are configurable to be TE or NT, you can thusconnect your telco line(s) as well as a PBX or ISDN terminals.

Terminals are powered with the built-in power supply, eliminating the need for anexternal box.

 Caratteristiche tecniche Patton SmartNode SN4131/4BIS8VHP/EUI

• 4 BRI ISDN punto punto - punto multipunto (P/P - P/MP)
• 8 chiamate
• Codec G.711, G.723, G.729, G.722, G.726 con Echo Cancellation
• T.38 fax
• Protocollo: Telnet, TFTP, HTTP, HTTPS, SNMPv3
• 1 porta Ethernet 10/100/1000 con auto MDI-X.
• Supporta protocolli VoIP
• High Precision Clock
• Supporta TLS/SRTP ma necessaria licenza aggiuntiva.
• DHCP server
• porta USB 2.0
• Alimentazione: 100-240VAC, 10W
• Dimensioni: 190,5 x 260,35 x 95,25 mm
• Peso: 960 gr
• EN 60950, TBR-3
• Certificazioni:FCC Part 15, CE

Come ogni Trinity SmartNode, il SN4131 è dotato di una procedura WEB guidata per una configurazione veloce e facile.

Sito ufficiale Patton
