Patton SN5770 ESBR E1/T1 30 VOIP 15 SIP sessions

 Patton Smartnode SN5770 1 flusso primario ISDN 30 canali SN5570/1E30VHP/EUI

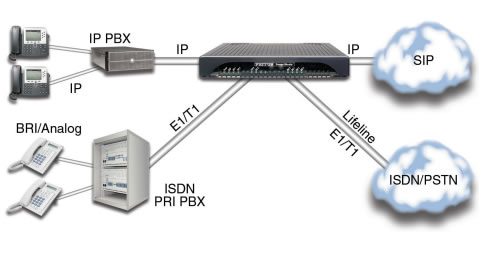

Patton SmartNode SN5570 Enterprise Session Border Router serve una vasta gamma di prodotti IP-PBX.

Attraverso i protocolli SIP TLS, SRTP, Stateful Firewall e il provisioning sicuro, protegge le reti LAN da attacchi di frode da Internet.

Il Web Wizard unique, consente un'installazione facile e senza problemi, permette di personalizzare l'interfaccia Web.

Lo SmartNode SN5570 è la soluzione per i service provider e gli integratori di rete alla ricerca di un prodotto VoIP che soddisfi gli standard ISDN in termini di funzionalità e di qualità.

Come ogni SmartNode, i modelli della serie SN5570 sono state-of-the-art ESBRs, forniscono anche completo routing IP policy-based.

Caratteristiche:

• 30 chiamate Voce.
• 1 flusso ISDN PRI E1/T1 port fino a 30 chiamate simultanee G.722, T.38 o G.711.
• 2 port2 Ethernet 10/100/1000  con auto MDI-X Ethernet, permettono routing.
• Supporta il tagging delle  VLAN, TOS and Diffserv .
• Supporta IPv6.
• Intereoperabilità voce e fax T.38 con diversi vendor soft-switc e vari IP-PBX.
• Hight Precision Clock.
• From 15 to 30 VoIP calls 1 or 2 ISDN E1/T1 PRI ports.
• Up to 30 simultaneous G.722, T.38 or G.711 ISDN to VoIP calls.
• Including SIP TLS and SRTP support for 30 calls.
• Or up to 16 SIP-to-SIP transcoded calls.
• Full VoIP protocol support SIPv2, SIPv2 over TLS, ISDN, DSS1, NI-2, QSIG**, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
• SIP to SIP transcoding for up to 16 calls, non transcoding up to 512**** calls.
• Full Telephony Features SessionRouter allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, 3-way conferencing (Roadmap) and much more.
• Complete Access Routing Two 10/100/1000 Ethernet ports with auto MDI-X. Ethernet Layer 2 switching and bridging. Access router with NAT, Policy Based Routing, Stateful Firewall, PPPoE, DHCP, DynDNS.
• Management & Provisioning Web-based management, WEB Wizard, SNMPv3, command line interface, autoprovisioning, separate config domain support, secure provisioning for configuration & software upgrades.
• Outstanding Interoperability Interoperable for voice and T.38 fax with leading SIP service providers, soft-switch vendors, and Asterisk™ IP-PBX. Class A Compliance All models with external (EUI) power supply.
• High Precision Clock Option DECT PBX interoperability and improved fax performance with Stratum 3 CO quality clock (HP)***.

• Voice Signaling SIPv2 SIPv2 over TLS SIP call transfer, redirect Overlap or en-bloc dialing DTMF in-band, out-of-band Configurable tones Call Routing & Services
• Regular expression number matching Regular expression number manipulation
• Least Cost Routing Number blocking
• Short-Dialing
• Digit collection
• Distribution and Hunt- Groups ISDN 1 or 2 E1/T1 PRI ports***, RJ- 45 (NE/TE) DSS1, Q.921, Q.931, NI-2 HP***
• High Precision Clock Stratum
• 3 CO Lifeline Bypass Relay*** Optional QSIG support**
• Voice Processing G.722 G.722.2 WB-AMR G.711m/A-law G.723.1 (6.4Kbps) G.729, 729a, 729ab (8 kbps) G.726 (16, 24, 32, 40 kbps) iLBC at 13.33 & 15.2 kbps G.168-2004 echo cancellation (128 ms) 30 simultaneous
• HD voice G722, G.711 or T.38 fax calls 30 calls with SRTP Transparent ISDN data 16 SIP to SIP transcodec calls
• Up to 512 SIP to SIP calls****
• Silence suppression and comfort noise
• Adaptive and configurable dejitter buffer
• Configurable packet length IP
• Quality of Service Voice priority, DownStreamQoS™
• Traffic Management, shaping policing IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
