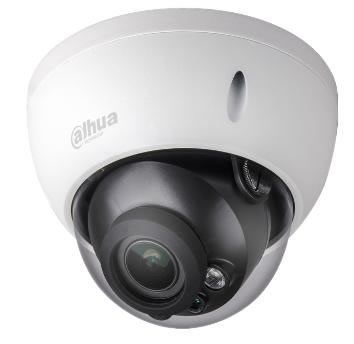

Dahua IPC-HDBW2231R-VFS Dome 2 MP varifocale PoE

Dahua IPC-HDBW2231R-VFS Videocamera IP dome 2 MP day & night PoE focale 2.7mm~13.5mm

Videocamera Dahua IP POE HDBW2231R-VFS per uso in interno ed esterno in qualunque condizione di luce.

• 1/2.8” 2Megapixel progressive StarvisTM CMOS
• H.265 & H.264 dual-stream encoding
• 25/30fps@1080P(1920×1080)
• WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
•  Micro SD card slot, up to 128GB
• 2.7~13.5mm varifocal lens
• Max IR LEDs Length 30m
• IP67, IK10, PoE

Camera

• Image Sensor 1/2.8” 2Megapixel progressive CMOS
• Effective Pixels 1920(H) x1080(V)
• RAM/ROM 256MB/32MB
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
• Minimum Illumination 0.006Lux/F1.4( Color,1/3s,30IRE)
• 0.05Lux/F1.4( Color,1/30s,30IRE)
• 0Lux/F1.4(IR on)
• S/N Ratio More than 50dB

Lens

• Lens Type Manual (-VFS)
• Mount Type Board-in
• Focal Length 2.7mm~13.5mm
• Max. Aperture F1.4
• Angle of View H:106°~29°, V:57°~17°
• Focus Control Manual(-VFS)

PTZ

• Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°

Video

• Compression H.265+/H.265/H.264+/H.264
• Streaming Capability 2 Streams
• Resolution 1080P(1920x1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)CIF(352×288/352×240)
• Frame Rate 2M (1 ~ 25/30fps)
• D1/CIF(1 ~ 25/30fps)
• H.264: 32K ~ 10240Kbps
• Day/Night Auto(ICR) / Color / B/W
• BLC Mode BLC / HLC / WDR(120dB)
• White Balance Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D DNR
• Motion Detetion Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Electronic Image Stabilization(EIS) N/A
• Smart IR Support
• Digital Zoom 16x
•

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 10 Users / 20 Users
• Edge Storage NAS
• Local PC for instant recording
• Micro SD Card 128GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software Smart PSS, DSS, Easy4ip
• Smart Phone IOS, Android

Certifications

• Certifications CE (EN 60950:2000)
• UL:UL60950-1
• FCC: FCC Part 15 Subpart B

Interface

• Video Interface N/A
• Audio Interface N/A
• RS485 N/A
• Alarm N/A

Electrical

• Power Supply DC12V PoE (802.3af)(Class 0)
• Power Consumption <8.3W(-ZS), <6W(-VFS)

Environmental

• Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
• Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions φ122mm×88.9mm(4.80''x3.50'')
• Net Weight 0.4Kg (0.88lb)
• Gross Weight 0.54Kg(1.19lb)

Sito ufficiale Dahua http://in.dahuasecurity.com/in/products/ipc-hdbw2231r-zsvfs-18671.html
