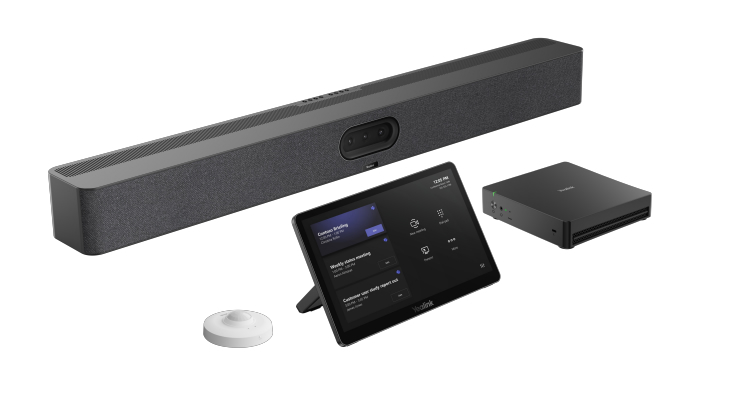

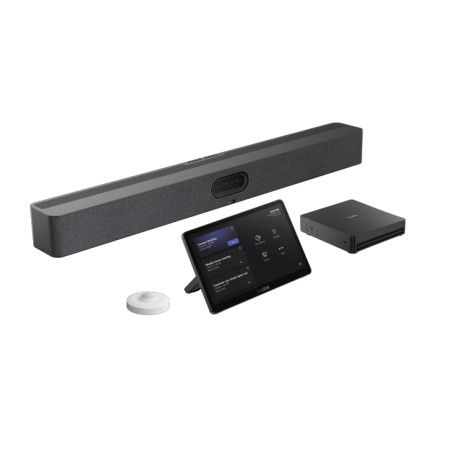

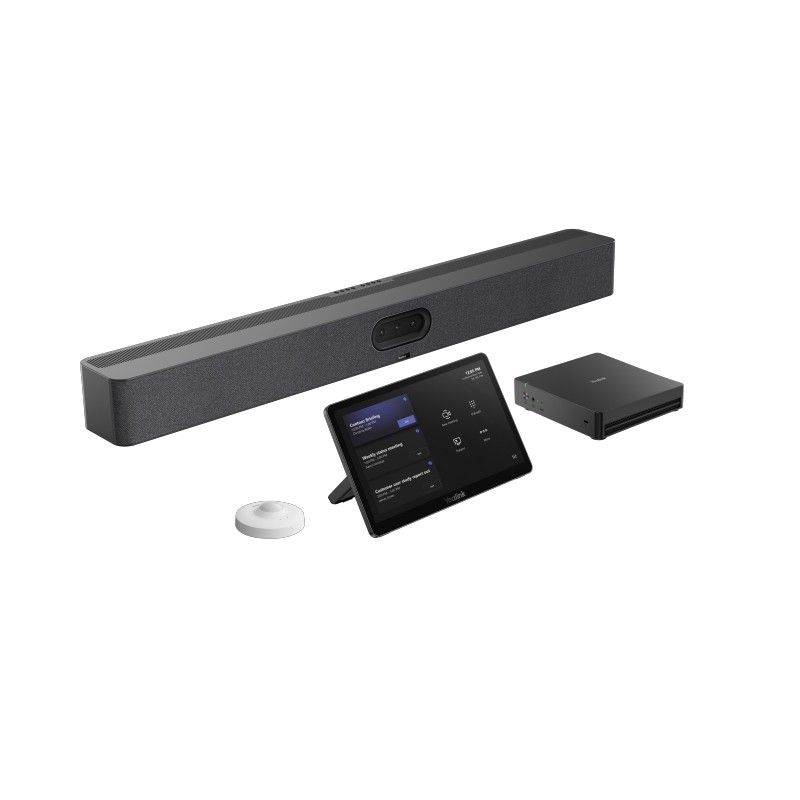

Yealink MVC S50 kit per videoconferenza Teams Rooms

Yealink MVC S50 kit per videoconferenza Teams Rooms

Il sistema Teams Rooms Yealink MVC S50 è ideale in sale riunioni di piccola e media dimensione fino a 13 partecipanti

Contenuto confezione:
1 Mini-PC MCore 4 con processore Intel Ultra5 125H
1 MTouch Plus, display touch da 11,6 pollici
1 MeetingBar A50 video soundbar
1 RoomSensor

Punti forti di Yealink MVC S50

• Sistema a doppia fotocamera
• Il sistema a doppia fotocamera garantisce una chiarezza eccezionale delle immagini.
• Con obiettivi orientati su entrambi i lati, offre un angolo di visione superiore, mentre le sue fotocamere da 48MP forniscono immagini ad alta risoluzione anche a distanze estese.
• FOV 120° e zoom 8X
• Sistema a doppia fotocamera 48MP
• Zoom digitale 8x
• Speaker tracking
• Multi-Focus
• Pictue in picture
• IntelliFocus
• Sfondo virtuale
• Video fence (delimita l'ara di ripresa video)
• 2 speaker da 10W
• Supporta fino a 2 microfoni die spansione (VCM35 VCM36 CM20)

Dettagli tecnici Yealink MVC S50

Kit:
• MCore 4
• MTouch Plus
• RoomSensor
• MeetingBar A50,all-in-one video collaborationPreload
• Windows 11 IoT Enterprise X64
• Windows 11 IoT Enterprise License
• Microsoft Teams Rooms App
• Yealink RoomConnect

MCore 4, Gen-4 Mini-PC
• Processor: Intel Ultra5 125H
• Memory: 16GB(2*8GB) DDR5
• Storage: 256GB SSD
• 3x HDMI video output
-CEC
-EDID
• TPM2.0
• Kernel DMA

Interfaces:
• 1 x HDMI-Out 2.1 port
• 2 x HDMI-Out 2.0 port
• 1 x HDMI-In port
• 4 x USB3.0 Type-A Port
• 1 x MTouch Port (RJ-45)
• 1 x LAN port for AV network
• 1 x 10/100/1000 Gigabit Ethernet Port
• 1 x Power Supply Port
• 1 x 3.5mm headphone Port
• 1 x reset port
• 1 x Security Slot
• WiFi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2

MTouch Plus
Physical Features:
• 11.6-inch narrow bezel IPS display
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)

Function Features：
•1920 x 1080 video resolution
• Support wired and wireless (with WPP30) content sharing
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

RoomSensor
• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%

MVC S50 Microsoft Teams Rooms System

MeetingBar A50 Camera:
• Number of preset positions: 9
• Electronic gimbal
• 1 x Wide HFOV 98°, VFOV 81° ;
• 2 x Tele HFOV 41.6° VFOV 31.8°
• 8 x digital zoom

Interfaces:
• 1 x USB3.0 Type-A port
• 1 x USB3.0 Type-B port
• 1 x USB2.0 Type-C port
• 1x Ethernet port
• 2 x Yealink VCH port (RJ-45)
• 1x 3.5mm Line-in & Line-out port
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
• 2 x HDMI-out

Dimensions and environmental factors:
• MeetingBar A50: 910 × 88 × 102 mm
• Operating humidity: 10 - 95%
• Operating temperature: 0 - 40°C
