Fanvil V61W telefono IP WiFi con 12 tasti

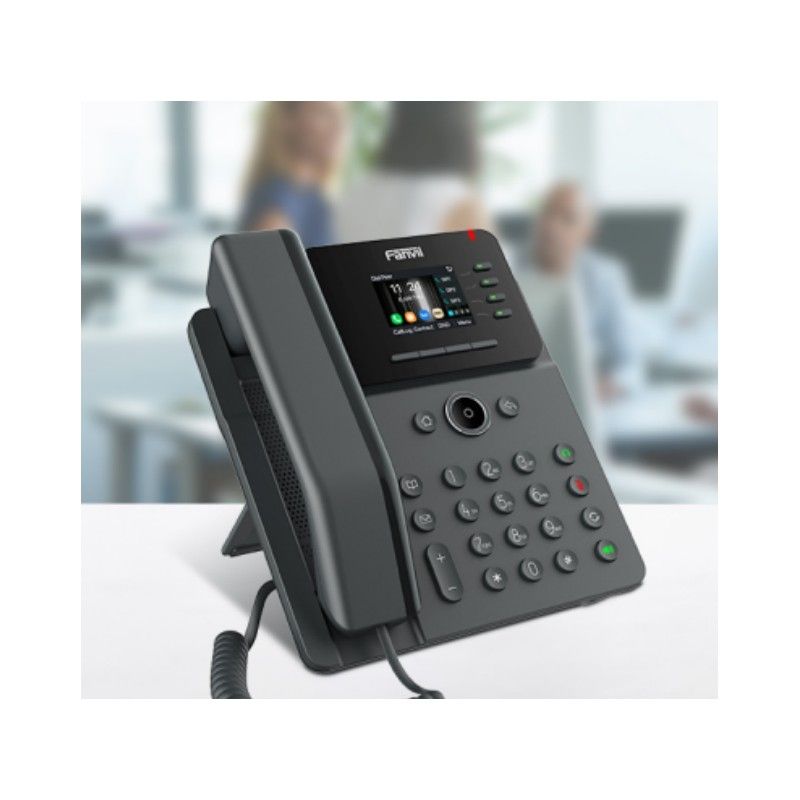

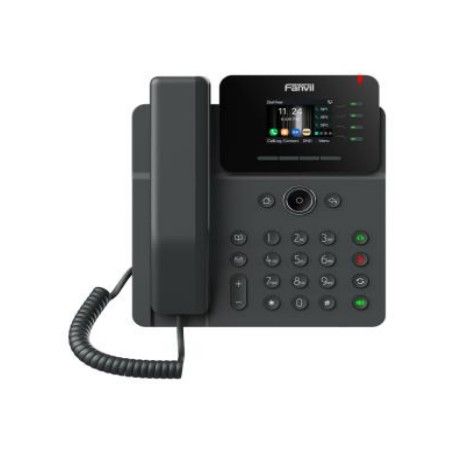

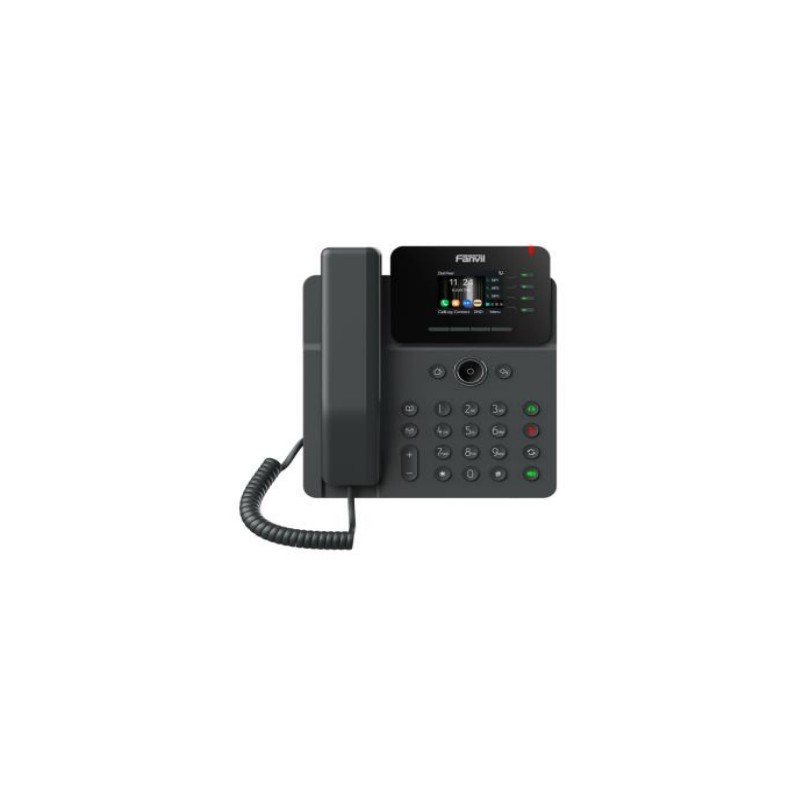

Fanvil V61W Telefono IP WiFi con 12 tasti programmabili

Il telefono IP Fanvil V61W supporta la connessione WiFi e la gestione di 4 linee SIP.

Fanvil V61W fa parte della nuova sere "V6" che include anche V67, V65, V64, V63, W61G.

Supporta utilizzo di cuffie con cavo via plug RJ9 standard e supporta cavo di sgancio elettronico (EHS) per uso di cuffie cordless professionali, come ad esempio Jabra Pro, Engage...

Fanvil V61W ha un design essenziale ma elegante.

E' un telefono IP SIP, studiato appositamente per uffici operativi, dove comunque eleganza ed il design sono una componente essenziale.

Grazie alla connettività WiFi può essere installato in ambienti e postazioni di lavoro non serviti da rete cablata.

Fanvil V61W caratteristiche principali:

• Connettività WiFi
• 4 linee SIP
• 12 tasti funzione programmabili con led
• HD audio
• Display monocromatico 2.4"
• Audioconferenza
• Compatibile con le piattaforme cloud, centralini software e centralini hardware più diffusi: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, YEastar, Openvox...
• Alimentatore 5V 1A incluso

Fanvil V61W funzioni e srevizi

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/out/missed, 1000 entries)
• Blocked List/Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Bluetooth headset (Via BT dongle BT20)
• Support Wi-Fi Dongle (Via WF20)
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording(through server)
• Action URL / Active URI
• uaCSTA
• Dial Plan
• SIP Hotspot
• Multicast
• Action Plan
• Group listening

Call Features

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• BLF
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 6-way Conference
• Hot Line
• Hotdesking

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz
• Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• WiFi
• 1 x 10/100/1000 Mbps Ethernet
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLSl
• RTP/RTCP/SRTP
• STUN
• DHCP
• CDP
• LLDP
• PPPoE
• 802.1x
• OpenVPN
• SNTP  FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256
• WiFi security Mode WPA/WPA2-PSK/802.X EAP

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Display LCD:2.4-inch
• 4 DSS keys with LED indicator light
• 5 Function keys (Contact, Hold, MWI, Mute, Headset, Redial)
• 4 Soft-keys
• 4 Navigation keys
• 1 OK key
• 1 Return key
• 12 Standard Phone Digits keys
• 2 Volume Control keys, Up/Down
• 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5.E Ethernet Cable x1
• Desk Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x1: Network x1, PC x1
• Power: DC5V/1A
• Working Temperature: 0~45℃l Working Humidity: 10~95%
• Installation: Desktop Stand, Wall-mounted (need an additional wall hanging parts)
• Color: Gunmetal

Include alimentatore
