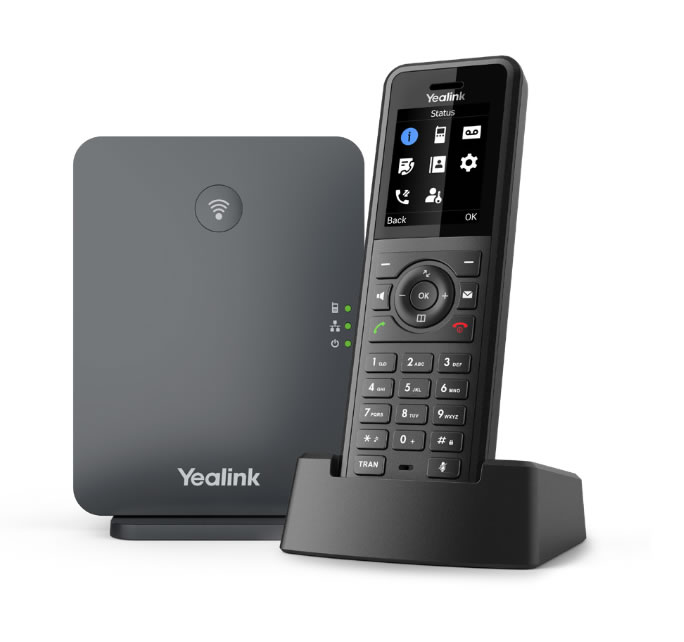

Yealink W77P cordless IP PoE resistente (IP54)

Yealink W77P cordless IP PoE resistente (IP54)

Lo Yealink W77P, è un cordless con base (PoE) e caricabatterie separati, supporta fino a 6 ripetitori RT30 ed è resistente alle sollecitazioni meccaniche (IP54)

Yealink W77P è un cordless PoE ideale in ambienti ufficio e piccoli hotel, B&B, abitazioni.

La possibilità di installare ripetitori dect RT30 permette di ampliare la copertura.

Supporta fino a 10 terminali Yealink, come W53, W56, W57 W59R, CP930W, CP935W, Terminali fissi con Dongle DECT etc.

Caratteristiche tecniche Yealink W77P

Interfacce - PoE
• 1 x RJ45 10/100 M Ethernet port
• Power over Ethernet (IEEE 802.3af), Class 1

Up to 20 simultaneous calls
• Up to 10 handsets
• Up to 10 SIP accounts
• Up to 2 simultaneous calls per handset
• Up to 6 repeaters per base station (RT30)
• Vibration alarm
• Alarm functions: push-button/no-movement/mandown/running
• Handset selection for receiving call
• Handset and number selection for placing call
• Paging, intercom, auto answer, dial plan
• Call hold, call transfer, 3-way conference
• Switching between calls
• Call waiting, mute, silence, DND
• Caller ID with name and number
• Anonymous call/Anonymous call rejection
• Call forward: Always/Busy/No Answer
• Speed dial/Voicemail/Redial
• Message Waiting Indication (MWI)
• Music on hold (server-based)
• Local phonebook for up to 1000 entries (store in the base)
• Remote phonebook/LDAP/XML phonebook
• Phonebook search/import/export
• 100 call history per handset: All/Placed/Missed/Received
• Direct IP call without SIP proxy
• Reset to factory, reboot
• Keypad lock, emergency call
• Broadsoft directory, BroadSoft call log
• Broadworks feature key synchronization
• Shared Call Appearance (SCA)
• XML browser
• Action URI

Altre caratteristiche tecniche del cordless Yealink WP77

Battery: 1460 mAh, Lithium-ion, 3.7 V, 5.4 WH
- Up to 40-hour of talk time
- Up to 575-hour of standby time

• 1.8” 128 x 160-pixel TFT color display
• Desktop or wall mountable
• LCD backlight, key backlight
• Energy-saving ECO mode/ECO Mode+
• Backlit keypad with 25 keys:
- Standard ITU telephone keypad, 12 keys, 4 x 3, with star and pound/hash key
- 5 navigation keys (left, right, up, down, OK)
- 2 softkeys
- 6 function keys (Speaker, message, Off-hook,Cancel, TRAN, Mute)
- 3 side keys (volume up/down, alarm)
- 6 shortcut keys

• Three LED indicators on W70B:1 x Registration LED,1 x Network Status LED,  1 x Power Indicator LED

• External Yealink AC adapter:AC 100-240V Input and DC 5V/600mA Output
• Color: Handset: Black ; Base: Classic Grey
• Handset size: 157 mm x 51 mm x 24 mm
• Base station size: 130 mm x 100 mm x 25.1 mm
• Operating humidity: 10%-95%
• Handset operating temperature: - 10 to +50°C
• Handset storage temperature: - 30 to +70°C
• Base station operating temperature: 0-40°C


• Package contents:
- W57R Handset with Belt Clip
- W70B Base Station
- Base Stand
- Charger Cradle
- Two Power Adapters
- Ethernet Cable
- Rechargeable Battery
- Decorative Cover
- Quick Start Guide
