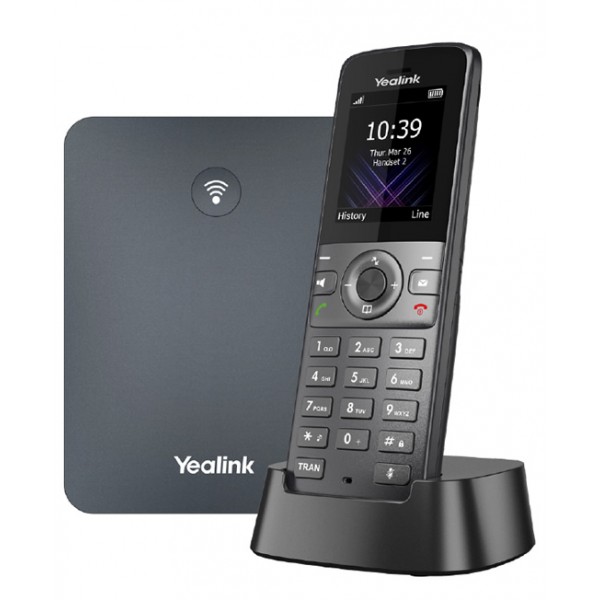

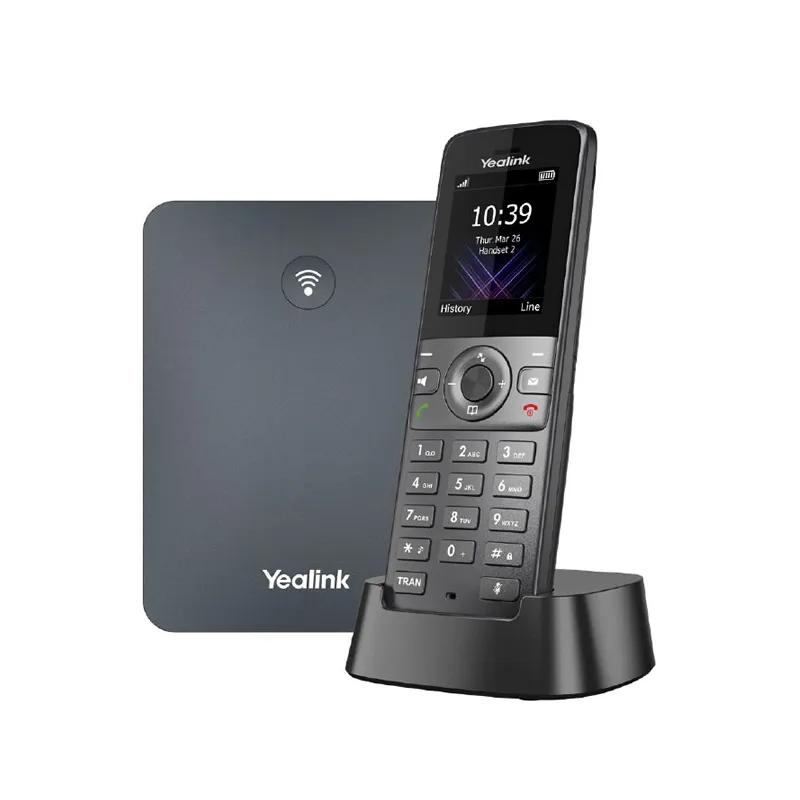

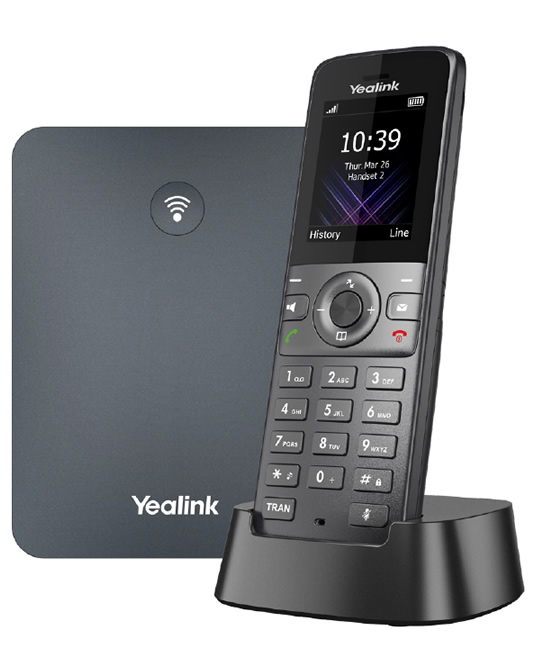

Yealink W73P

Yealink W73P

Lo yealink W73P è un cordless DECT IP che supporta fino a 10 utenti, 20 chiamate contemporanee e fino a 6 repeaters.

Grazie alla presa di rete Ethernet PoE, è possibile collegare la base anche in punti dell'azienda o di casa, in cui non è disponibile la rette 220VAC.

Confezione Yealink W73P

Base, portatile con caricabatterie, 2 alimentatori, cavo di rete, clip cintura, guida utente

Caratteristiche tecniche del cordless IP DECT Yealink W73P

Audio Features

• Full-duplex speakerphone
• Hearing Aid Compatibility (HAC) compliant
• FNR (Flexible Noise Reduction)/Noise
• Cancellation
• Receiver volume control: 5 steps
• Ringer volume control: 5 steps+off
• Multiple advisory tones
• Acoustic warning for low battery status
• DTMF
• Wideband codec: Opus, AMR-WB (optional),G.722
• Narrowband codec: PCMU, PCMA, G.726, G.729,G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB
• AEC (supported by W73H)
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP assignment: static/DHCP
• Support outbound proxy server backup Security
• Open VPN
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication
• Secure configuration file via AES encryption
• Support SHA256/SHA512/SHA384
• Three-level configuration mode: Admin/Var/User DECT
• Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz(US)
• DECT Standards: CAT-iq2.0

Interface

• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af), Class 1
• Headset jack (3.5 mm)

Phone Features

• Up to 20 simultaneous calls
• Up to 10 handsets
• Up to 10 SIP accounts
• Up to 2 simultaneous calls per handset
• Up to 6 repeaters per base station (RT30)
• Handset selection for receiving call
• Handset and number selection for placing call
• Paging, intercom, auto answer, dial plan
• Call hold, call transfer, 3-way conference
• Switching between calls
• Call waiting, mute, silence, DND
• Caller ID with name and number
• Anonymous call, Anonymous call rejection
• Call forward (always/busy/no answer)
• Speed dial, voicemail, redial
• Message Waiting Indication (MWI)
• Music on hold (server-based)
• Local phonebook for up to 1000 entries(store in the base)
• Remote phonebook/LDAP/XML phonebook
• Phonebook search/import/export
• 100 call history per handset: All/Placed/Missed/Received
• Direct IP call without SIP proxy
• Reset to factory, reboot
• Keypad lock, emergency call
• Broadsoft directory, BroadSoft call log
• Broadworks feature key synchronization
• Shared Call Appearance (SCA)
• XML browser
• Action URI

Personalization

• 9 ringer melodies
• Screen saver
• Multilingual user interface

Management

• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto-provision with PnP
• Handset upgrade: OTA (Over-The-Air)
• Configuration: browser/phone/auto-provision
• Trace package and system log export

Physical Features

• Indoor Range: 50m (in ideal conditions)
• Outdoor Range: 300m (in ideal conditions)
• Standby Time: 400 hours (in ideal conditions)
• Talk Time: 35 hours (in ideal conditions)
• 1.8" 128 x 160-pixel TFT color display
• Desktop or wall mountable
• LCD backlight, key backlight
• Energy-saving ECO mode/ECO Mode+
• Backlit keypad with 25 keys:
• - Standard ITU telephone keypad, 12 keys, 4x3, withstar and pound key
• - 5 navigation keys (left, right, up, down, OK)
• - 2 softkeys
• - 6 function keys (Speaker, message, Off-hook,Cancel, TRAN, Mute)
• 6 shortcut keys
• Three LED indicators on W70B:
• - 1 x Registration LED
• - 1 x Network Status LED
• - 1 x Power Indicator LED
• External Yealink AC adapter????AC 100-240V Input and DC 5V/0.6A OutputColor: Handset: Space Grey; Base: Classic Grey
• Handset size: 144.5 mm x 48 mm x 21 mm
• Base station size: 130mm x 100mm x 25.1mm
• Operating humidity: 10~95%
• Operating temperature (handset): -10~+50°C
• Storage temperature (handset): -30 ~ 70°C
