Registratore telefonico 1 PRI ISDN 30 canali
Call recorder con flusso ISDN da 30 canali incluso.
Call Recorder PRI price for a 30 channel recorder with compression
Caratteristiche tecniche principali del call recorder 30 canali (1 PRI ISDN)
• Records up to 30 channels simultaneously
• Real Time Audio compression on all channels
• Notification/Announcement through spoken message
• White/Black listing
• Number filters for outgoing Caller-ID
• Recording of date, time, Caller-ID, etc.
• Direct marking of calls (e.g. in case of threats)
• Use of special functions via dial codes
• Automatic backup via Araña software
Software Included: Araña web interface (Single user version), optional Multi user version
The included single user Araña software enables you, on one workstation, to access the data-base via a standard web browserand quickly find, download, playback or e-mail recordings.
With the Araña software one can also configure the recorder, create a backup or generate statistical information on telephone usage in the organization.
Araña can optionally run as a Windows Service for automatic operation. The optional multi-user version of Araña gives access to the database for anyone who is authorized.
Optional: Call Recorder Access System software
This PC software can be used for archiving of recorded calls, creation of user specific archives, listen to calls, analyse call statistical data and much more.
• The solution for management of large databases
• Direct playback on the PC from remote recorders
• Integrated WAV editor (original recordings remain preserved)
• Presents graphical analyses of statistical call data
• Displays fax transmissions (optional)
• Export of recordings and archiving on external media
Optional: RTR direct Call monitoring software
The RTR Call Monitor software allows for monitoring ongoing telephone calls. For use in training courses in call centres, etc.
Included with optional CD recorder: Quick CD Access software to quickly archive one or more recordings on CD
Extensive select and search function: it is easy to make selections based on, for instance, name, date or telephone number.
Export and conversion routines: specific telephone calls or whole selections can be exported onto CD-ROM or DVD and / or converted into a PC-WAVE format that is playable on any PC.
The optional CryptoCard allows you to encrypt recordings real-time. Without a corresponding decryption card and PIN,
encrypted recordings cannot be played back. This is not only a professional way to protect conversations, but is also ideal for protecting privacy of those involved.
• Ambient temperature 0 - 40°C
• Size: 19” Rack Mount case; 44 x 31,5 x 9,5 cm
• Weight: 6000 gram
• Power: 90-264V~ 47-63Hz, consumption: 12W
• Telecom: ISDN Primary Rate (up to 30 ch / line) on 2x RJ45, NT and TE
• Network: Ethernet RJ45

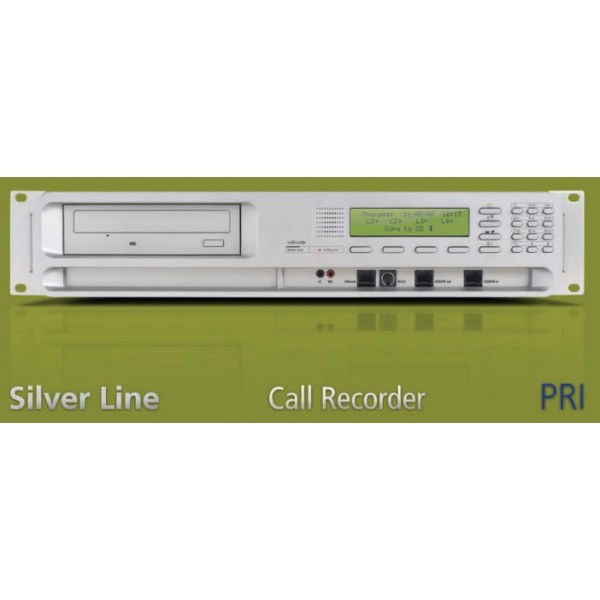

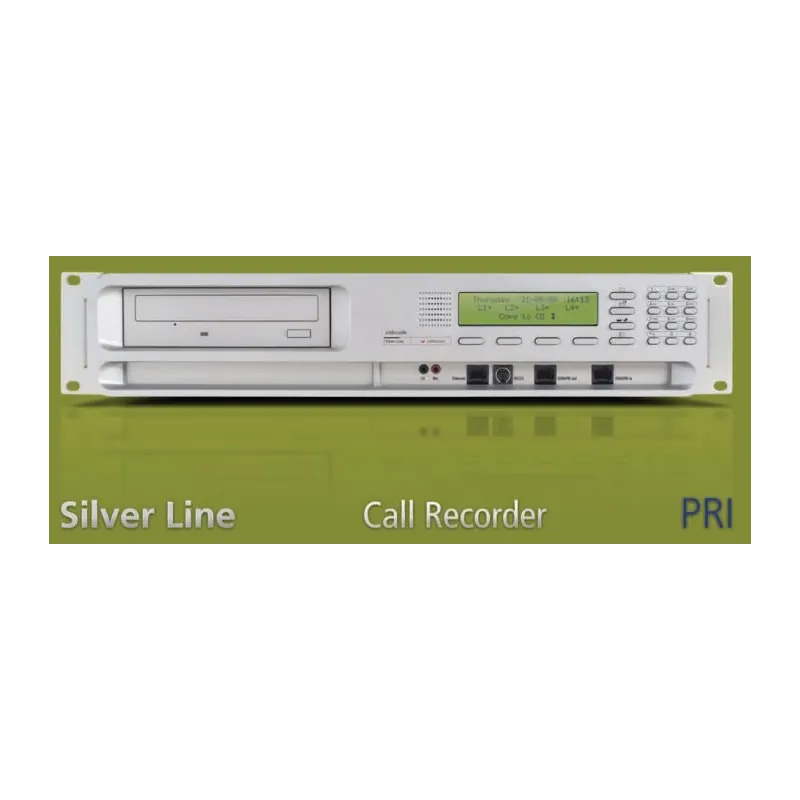

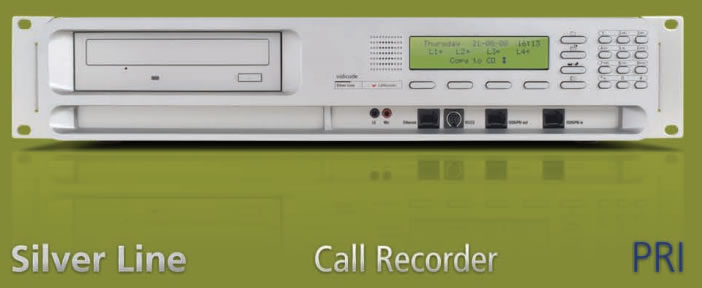

The Call Recorder PRI models are Vidicode’s top models for recording from ISDN Primary rate (30 channels, also referred to as E1).
The PRI is manufactured with the latest techniques developed by Vidicode to make it the most easy to install, yet flexible E1 recorder.
Why would you need a Call Recorder PRI? Some possible answers could be: To protect your organisation when employees trustingly act on something agreed by telephone, such as an order placed. To justify that employees have responded well to the demands of people and organisations, for example in healthcare. To protect our employees against threats.
There are three basic models of the Call Recorder PRI :
010.01830 PRI for 30 channels with high quality recording only (4100 hours)
010.01832 PRI for 16 channels with full compression mode (41000 hours)
010.01834 PRI for 30 channels with full compression mode (41000 hours)
Pass Through mode
The Call Recorder PRI is connected between the ISDN network and the local telephone system, usually a PBX.
This adds new functionality to the line and at the same time leaves the existing functionality untouched. Some of the possibilities of the Pass Through Mode:
– The PRI can answer the telephone, give the notification message and then connect to the PABX
– The PRI has various settings for selective recording, for example via a command from the telephone keys (** star commands) or based on internal or external number recognition (Caller ID).
Do you want to simply record everything or do you want to start the recording yourself or do you want to decide if you need a recording after the call is completed?….
– The PRI can withhold internal telephone numbers on an outgoing call (CLIP Filtering)
The Call Recorder PRI is equipped with an IC Card reader. Using the CryptoCard, available as an option, the recordings can be encrypted. Without a corresponding CryptoCard and pin code the encrypted recordings cannot be played back. This is not only a professional way to protect the calls, but is especially useful to protect the privacy of the people involved.
