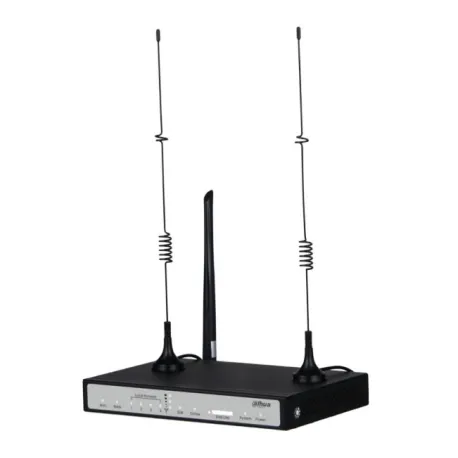

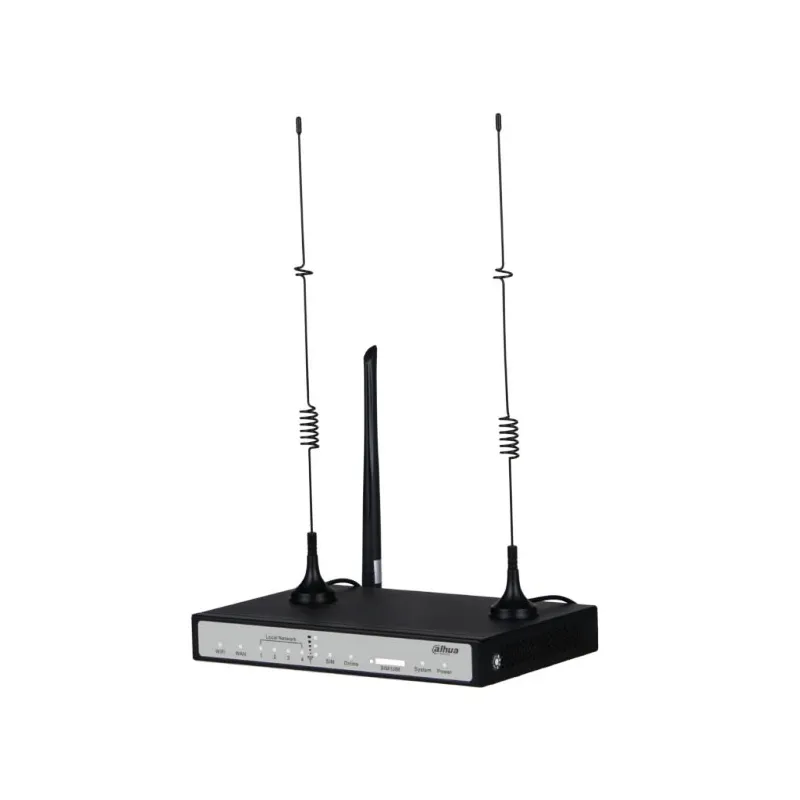

Dahua Router LTE Dahua WM4700-O
The 4G Router is applicable to M2M industry in the IoT industrial chain, such as self-service terminal, smart grid, intelligent transportation, smart home, finance, industrial automation, intelligent building, firefighting, and public security.
4G Router
- 4G transmission: High speed 4G LTE connection, 100 Mbps downlink and 50 Mbps uplink.
- Wi-Fi transmission: Connect your smartphone, laptop and all other wireless devices to the 4G router through Wi-Fi for Internet access.
- Security tunnel: VPN tunnel ensures the security of sensitive data, such as monitoring data and business data.
- Industrial Design: Ensure long-term reliable operation in outdoor harsh environments
Software:
- WAN Connection Modes:Static IP, DHCP, PPPOE and 4G
- VPN: VPN client (PPTP, L2TP, IPSEC), VPN server (PPTP, L2TP, IPSEC)
- Wi-Fi: 802.11b/g: Up to 54 Mbps, 802.11n: Up to 150 Mbps
- Encryption: WEP, WPA and WPA2
- NAT: Support port mapping
- Network Mode:Southeast Asia version: B1/B3/B5/B8/B38/B39/B40/B41, Oceania and North American version: B1/B2/B3/B4/B5/B7/B8/B28/B40, European version: B1/B3/B5/B7/B8/B20/B38/B40/B41
- System Management:Support import and export of configuration file, , Support local upgrade, Support system log
Hardware:
- WAN Port One 10/100 M RJ-45 port
- LAN Port Four 10/100 M RJ-45 ports
- Serial Port 1 RS232 serial port, port rate: 115200 b/s
- Antenna Cellular: 2 standard SMA female ports with impedance of 50Ω
- Wi-Fi: 1 standard SMA male port with impedance of 50Ω
- Indicators: Power, System, Online, SIM, Local Network, WAN, Wi-Fi and Signal Strength indicators
- SIM/UIM Card Port 1.8V/3V SIM/UIM card
- Reset Restore factory defaults
- Operating Temperature -35°C to +75°C (-31°F to +167°F)
- Operating Humidity 5%–95%
- Power Consumption 6.6W
- Power Supply DC 12V/1.5A
- Dimensions (L × W × H) 207 mm x 135 mm x 28 mm (8.15" × 5.31" × 1.10" )
- Weight 0.8 kg (1.76 lb)
