Twig One EX Atex con man down GPS SRD3

Twig One EX GPS Man down SRD3 terminale per la protezione del lavoratore isolato

Twin One Ex, Atex: II 2 G Ex ib IIC T4 Gb II 2 D Ex ib IIIC T130°C Db

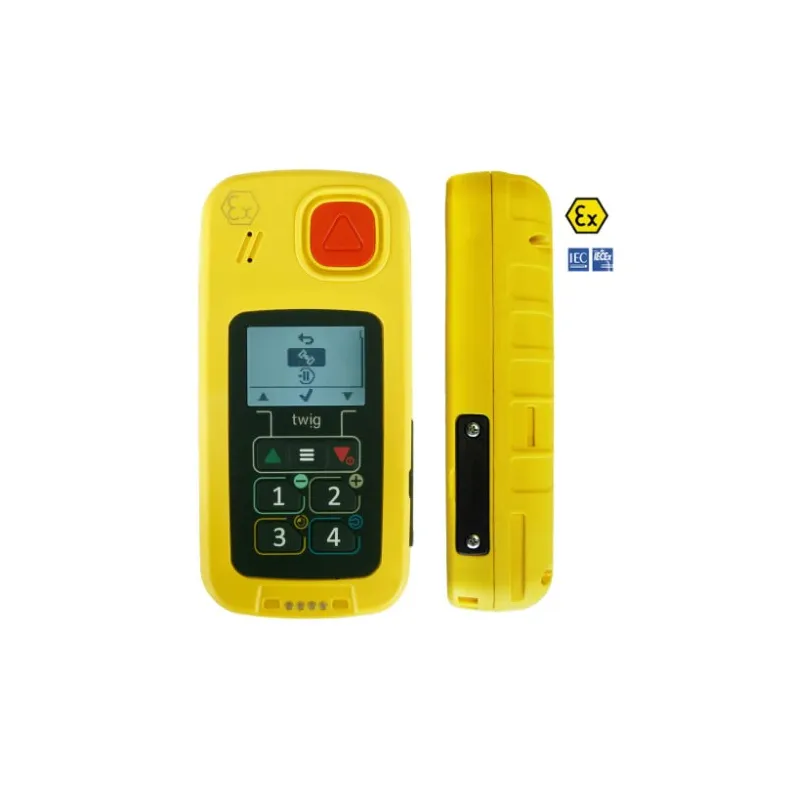

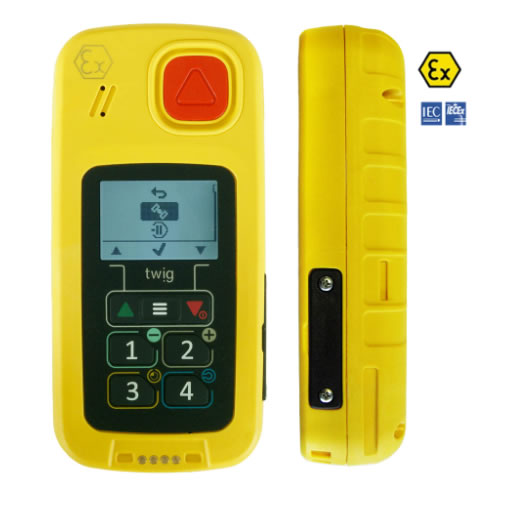

TWIG One Ex is an intrinsically safe personal alarm device optimized for lone worker protection in potentially explosive environments.

It is equipped with the essential lone worker protection functions, a powerful loudspeaker, programmable device keys and a configurable user interface.

The device functionalities can be extended with compatible TWIG Point cloud services and TWIG short range devices.

TEX approved II 2 G Ex ib IIC T4 Gb II 2 D Ex ib IIIC T130°C Db Ta: -20°C...+60°C EESF 20 ATEX 045X / IECEx EESF 19.0020X Alert triggers include alarm button, automatic ManDown function, Amber alert and optional TWIG Remote Button of SRD category 2.

Predefined emergency protocol transmits last known user position and opens two-way voice connection to alarms receiving centre (ARC).

High-performance GNSS receiver with turn-key AGNSS feed is complemented with TWIG Beacon SRD, Bluetooth Low Energy and Wi-Fi indoor locating beacons.

Excellent operating times even in continuous GNSS satellite monitoring are achieved through advanced technology and large-capacity battery.

Fully remotely configurable, the intrinsically safe TWIG One Ex lone worker alarm is fast to deploy and flexible to operate. Also USB programmable, either manually or using saved file.

TWIG Integrator Kit resources enable integrating TWIG devices with alarm receiving centre.

Optionally the TWIG Point services provide a turn-key solution for testing or deployment.

Or receive alarms and reports on your smartphone as SMS with web link, opening up Google Maps view. The TWIG One Ex including a short range devices (SRD) transceiver can receive alarms from several TWIG Remote Button short range devices and determine its position from nearby TWIG Beacon locating devices also when GNSS signal is not available.

Note! Compatible with NFC tags but not with TWIG SRD tags!

• SRD3
• Tastiera configurabile
• Supporta integrazone NFC
• Posizionamento interno - Supporta Beacon - GNSS - AGNSS
• ATEX approved  II 2 G Ex ib IIC T4 Gb -  II 2 D Ex ib IIIC T130°C Db
• Ta: -20°C...+60°C
• EESF 20 ATEX 045X / IECEx EESF 19.0020X
• Man down

Standard sales package

• TWIG One Ex 2G/3G + 4G Data personal alarm device with integral battery
• TWIG Ex USB cable and TWIG Ex charger with adapter of choice (EU/UK/AU)
• User and safety documents

Optional device features

• SRD3 compatibility including SRD + Wi-Fi + BLE location + NFC reader 13.56 MHz

Accessories

• Charging and programming stations
• DIY kit for alterable SOS key colours
• Belt clip
• Ex carrying case
• Car charger

Non-ATEX SRD devices:

• TWIG Beacon SRD*
• TWIG Remote Button SRD*
• TWIG Door Sensor SRD*
• Software and resources
• TWIG Configurator PC app
• TWIG FirmwareLoader PC app, FOTA
• TWIG Integrator Kit for ARC integration

Safety phone 2G/3G/4G di tipo PRO con GPS integrato, IP67, certificato Atex II 2 G Ex ib IIC T4 Gb / II 2 D Ex ib IIIC T130°C Db, chiamate d'emergenza manuali, sensore inclinazione / non movimento, vivavoce, 4 tasti chiamata rapida, 1 tasto antipanico, configurazione tramite USB o remota via SMS/GPRS. Disposto per comunicare con SRD3 (Beacon/Pulsante remoto). Include caricabatterie e adattatore per la
connessione del dispositivo a porta Usb. (Clip & Custodia non inclusi)
