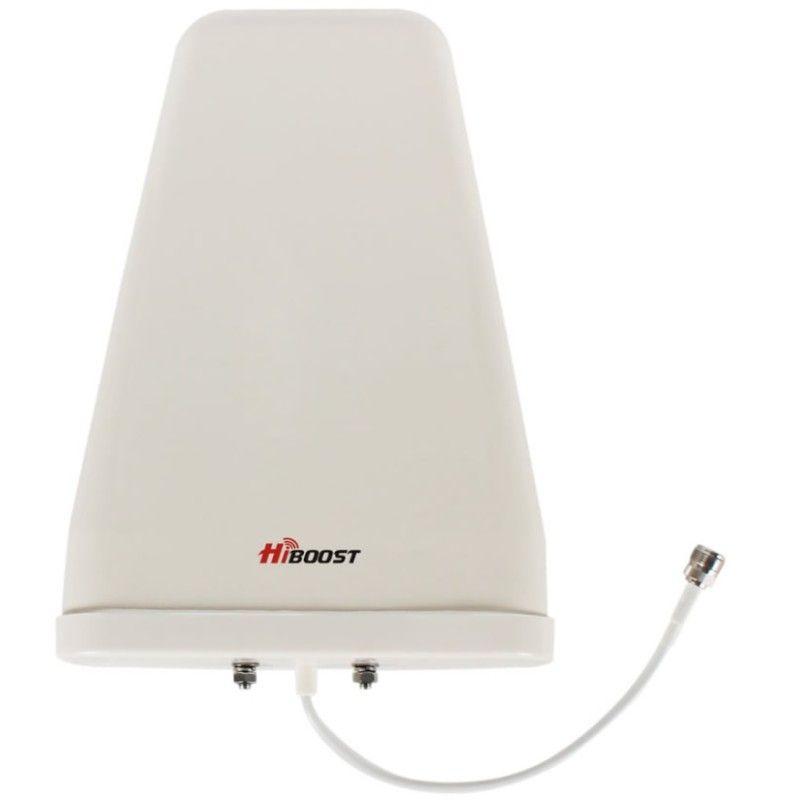

Hiboost antenna direttiva esterna HDE

Outdoor panel antenna direzionale hiboost HDE

Antenna a pannello per installazione all'esterno con connettore precablato

It’s a high gain panel antenna mounted outdoors to receive poor mobile signal from BTSs. This outdoor antenna is directional and broadcasts signal only in one direction. The accessory transmits 2G, 3G and 4G signals and supports all frequencies within 698-2700 MHz range.

Caratteristiche tecniche

• Antenna Application Outdoor
• Antenna Type Pnel Antenna
• Frequency 800 MHz (4G/LTE), 900 MHz (GSM/EGSM), 1800 MHz (DCS/LTE), 2100 MHz (3G/WCDMA), 2600 MHz (4G/LTE)
• Frequency Range 698-960/1710-2700 MHz
• Antenna Bandwidth 154/990 MHz
• VSWR ≤1.7/1.5
• Antenna Gain 7 dBi
• Input & Output Impedance 50 ohm
• Polarization Vertical
• Material of Radiator CU
• Connector Type N-M
• Max. power 50 W
• Dimension 210*180*43 mm
• Weight of Antenna 0,7 kg
