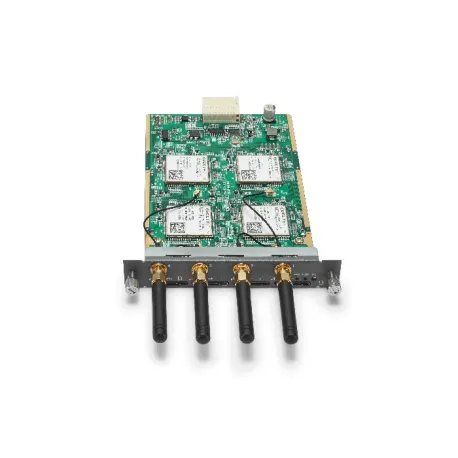

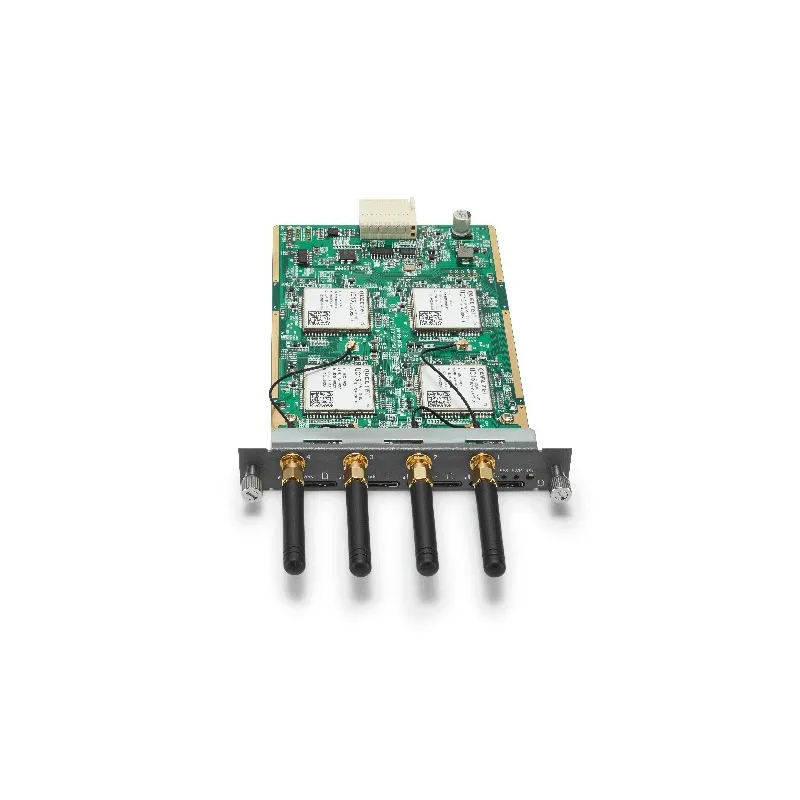

Scheda Openvox GWM420W 4 x 3G-UMTS

Scheda Openvox GWM420W 4 x 3G-UMTS

Allows OpenVox wireless VS-GW1600/2120 series gateways to support 3G connection to the VoIP devices;

Each module offers 4 3G/UMTS channels.

The GWM420W is 4 ports WCDMA gateway module, which can work with our GW1202V2/GW1600V2/GW2120V2

Technical Specifications:

• Storage temperature range: -40~125℃
• Operation temperature range: 0~50℃
• Operation humidity range: 10%~90% non-condensing
• Power source:1U ATX power souce,12V/12A

• Max Power Consumption: 7W
• Dimension: 13cm × 2.1cm × 20cm
• Weight: 170g

VS-GWM420W-E Europe

• 900/2100MHz @UMTS
• 900/1800MHz @GSM
