Videocitofono IP parete o incasso 1 tasto PoE IP65 VTO2202F-P
Videocitofono installabile in superficie o ad incasso (con scatole opzionali). PoE, 1 relè. Infrarosso, IP65

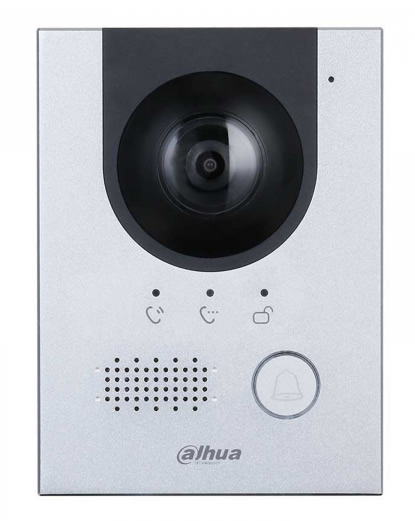

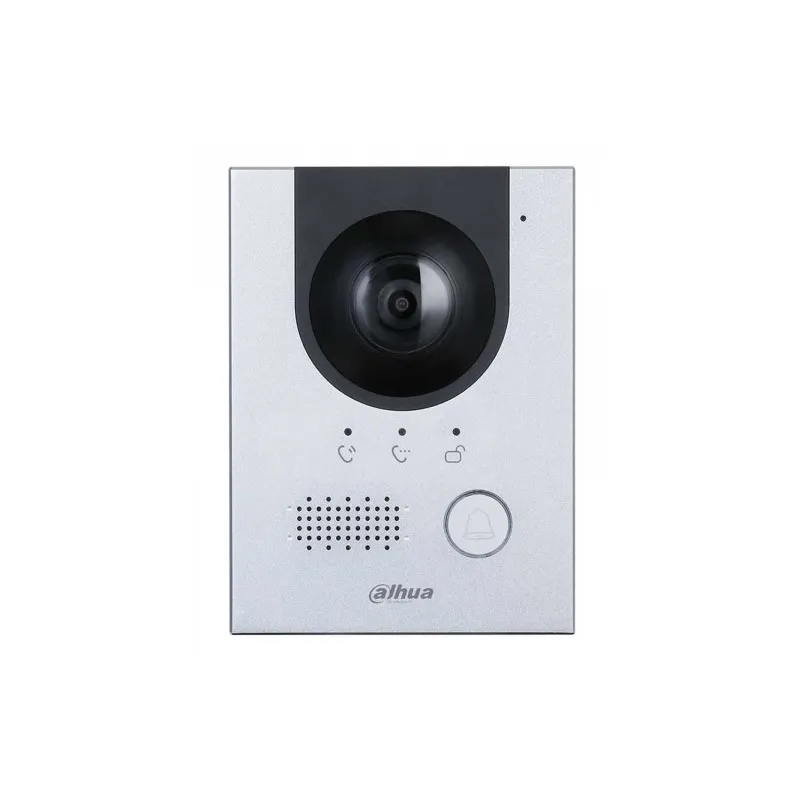

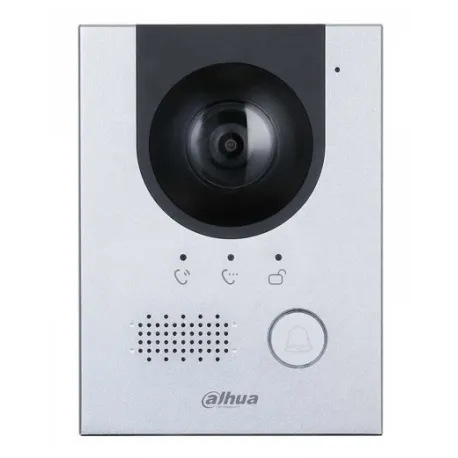

Il videocitofono IP Dahua VTO2202F-P è un posto esterno in alluminio IP65 antivandalo IK07.
E' dotato di telecamera da 2 Mp, ottica 2 mm, illuminazione con led IR e supporta connessione tramite la porta LAN o bifilare.

Ha un relè per comandare elettroserratura.
E' possibile aumentare il numero di relè con scheda opzionale
Ha in dotazione 1 ingresso allarme, microfono e speaker integrati ed è installabile sia a parete (superficie) che ad incasso, con box opzionali.
Si alimenta in PoE o con alimentatore opzionale 12 Vdc ma è possibile utilizzare anche VTNS1006A-2-A per alimentazione+dati se utilizzato in un sistema bifilare
- VTM115 - Scatola installazione a parete
- VTM114 - Scatola installazione incasso
- VTM05R - Scatola installazione a parete con tettuccio
Caratteristiche tecniche principali del videocitofono Dahua VTO2202
- 2MP CMOS camera
- Mechanical button
- Night vision & voice indicator
- PoE
- 160° angle of view
- Compatible with VTH5222CH-S1 and VTNS1006A-2
- Group call
- Power supply by 2-wire
- Aluminium alloy plate
- IP65 (applicare silicone isolante tra il dispositivo e la parete)
- IK07
- Surface mounted and flush mounted
System Parameter
- Host Processor: Embeded processor
- Camera: 1/2.8" 2MP CMOS high definition low illumination colorful
- Angle of view D:180° H:160° V:82°
- Focal length: 1.95 mm
- WDR: Support
- Noise reduction: Noise suppression and echo cancellation
- Video encoding H.264
- Frame rate PAL:25 fps NTSC:30 fps
- Audio encoding G.711 U
- Video bit rate 256K to 2M
- Light compensation IR Supplement
Port
- 1 RS-485 Port
- 1 Alarm Output
- 1 set Lock Control (NO/NC/COM)
- 1 set Door Status Detection
- 1 set Eoc
- 1 Exit Button
- 1 set Tamper Switch
- 1 Network Interface
- Power Output 12V/100mA
Alarm Parameter
- Tamper Alarm: Support
- Door Sensor Timeout Alarm: Support
- Alarm Iutput: Support
- Alarm Output: Support
User Parameter
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Loudspeaker
- Status Indicator: calling&communication&unlocked
- Communication Methods: Digital communication
- Unlock Mode: Remote unlocking
- Auto Snapshot: Support
- Leave Videos or Text Messages: Support
- Storage: Extended 64 G TF Card
- WEB Configuration: Support
- Real-Time Monitor: Support
Normal Parameter
- Ingress Protection: IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- Network Update: Online update
- Housing material: Alumimum
- Power supply mode: 2-Wire Inteface or PoE
- Rated Power: 12V DC
- Rated Current 1A
- Installation method: Supports surface mounted and flush mounted
- Dimensions: 130 mm×96 mm×28.5 mm (5.1"×3.78"×1.1")
- Working Temperature: -30°C to +60°C (-22°F to +140°F)
- Working Humidity: 10%–90%
- Atmospheric Pressure: 86kPa–106kPa
- Power Consumption: ≤12W
- Total Weight: 0.35kg/0.77lb
- Environmental Requirement: Outdoor
