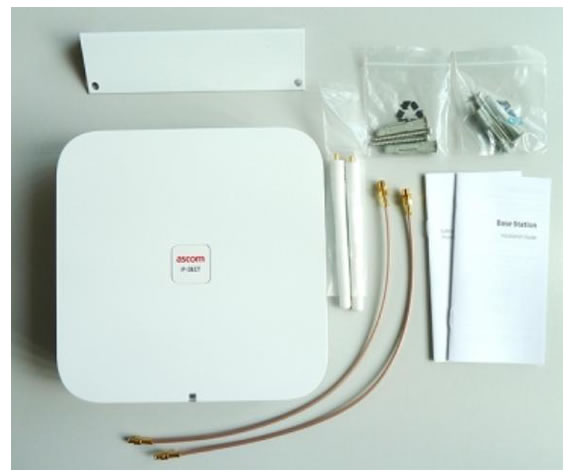

Ascom IPBS2-A4A cella DECT IP con antenna esterna

Codice: IPBS2-A4A    SKU: IPBS2-A4A
Ascom
Ascom IPBS2-A4A è una cella (antenna) Dect IP con 2 antenne esterne all'involucro della base station per avere massima potenza segnale di copertura wireless.
Questo prodotto è fuori produzione.
Cerca prodotti simili
0

Condizione: Nuovo

  • Dettagli

  • Scheda tecnica

  • Download Download (1)

  • Recensioni


Ascom IPBS2-A4A stazione radio base IP DECT con antenne esterne

FUORI PRODUZIONE SOSTITUITA DA IPBS3-A4

Ascom IPBS2-A4A è una cella (antenna) Dect IP con 2 antenne esterne all'involucro della base station per avere massima potenza segnale di copertura wireless.

la stazione radio base Ascom IPBS2-A4A, permette la configurazione Over the Air di tutti i cordless connessi.

Design compatto e facilità di installazione a muro o su un palo.

Ascom IPBS2-A4, è compatibile con tutti i più diffusi standard di comunicazione DECT e può essere alimentata tramite PoE.

Ascom IPBS2-A4A
L’antenna incorporata ha copertura radio eccezionale, grazie alle 2 antenne installabili all'esterno della stazione radio base.


Caratteristiche principali Ascom IPBS2-A4A

  • Interfaccia radio DECT GAP/CAP
  • Protocollo SIP sicuro e criptato
  • Telefonia, messaggistica ed allarmistica integrate
  • Antenna integrata, antenna esterna aggiuntiva
  • Configurazione centralizzata
  • In questa versione permette 4 chiamate contemporanee
  • Power over Ethernet
  • 2 antenne esterne incluse
  • Alimentatore non incluso.

Ulteriori dettagli dell'antenna IP DECT Ascom IPBS2

Compact and easily mounted: The compact design of the IP-DECT access point make it easy to install on a wall or pole or, if necessary,  placed in a housing and mounted outdoorsH.323 version 4 incl. H.225, H.235, H.245ƒ

Voice over IP

  • H.450 with H.450.1, H.450.2, H.450.3, H.450.4, H.450.6, H.450.7, H.450.8 and H.450.9ƒ
  • SIP with RFC 1889, RFC 2327, RFC 2396, RFC 2617, RFC 2782, RFC 2833, RFC 2976, RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3265, RFC 3311, RFC 3325, RFC 3326, RFC 3420, RFC 3515, RFC 3555, RFC 3680, RFC 3842, RFC 3891, RFC 3892, RFC 4568, RFC 3711, RFC 2246 and RFC 3280
  • draft-ietf-sip-privacyƒ
  • draft-levy-sip-diversion

    Voice Encoding:ƒ
  • G.711 A-law / μ-law (64kbps)
  • G.723.1 5.3 kbps
  • G.729A and AB 16 kbps
  • G.726 32 kbps

    Radio RF output power (e.r.p.), EU:
  • Between 23  dBm and 28 dBm (with internal antenna)

Dati meccanici e fisici

  • Dimensions (l × w × d): 170 × 170 × 38 mm (including mounting bracket)
  • Weight: Approx. 400g
  • Material: ABS moulded plastic
  • Colour: White
  • External connectors 2 × MCX connectors for external antennas

    Environmental
  • Operating temperature: -10°C to +55°C
  • Storage temperature: -25°C to +55°C
  • Relative operating humidity: 15 to 90%, non condensing
  • Relative storage humidity: 5 to 95%, non condensing
  • Immunity to electromagnetic fields:  10V/m   (EN61000-4-3)
  • Immunity to ESD: 6 kV contact discharge and 8 kV air discharge (EN61000-4-2

    Alimentazione
  • Power over Ethernet IEEE 802.3af or local power supply
  • Operating voltage: 21 to 56 Vdc
    Power consumption: typical 4W, maximum 5W
  • Alimentatore non incluso.

Richiedi preventivo o progetto al nostro staff


The Generic IP-DECT Access point with external antennas operates in the 1880 - 1930 Mhz frequency band with 100-250mW Output Power (Note: Market dependent). It supports; DECT GAP/CAP-protocol, 8 speech channels, PoE and 21 to 56 VDC. Incl. bracket and mounting material. Power supply not included.

With the four base stations, wireless networks can be built up to 1000 IP DECT with RBS up to 2000 DECT handsets with Communication Manager and RBS up to 32 up to 120 handsets with IP Office.
Specifies the IP DECT radio base stations are available in two versions, and integrated with the connection of external antennas.

The IP-DECT base stations with the Radio Communication Manager and IP Office businesses operate across a LAN Switch with Ethernet cabling. The IP-DECT radio base station can either Power over Ethernet or through the use of an external power supply can be operated (optional). Each IP Base Station DECTRadio is designed for up to eight simultaneous calls.
