Sennheiser TeamConnect Ceiling 2 microfono da soffitto

Codice: 507488    SKU: 507488
Sennheiser
Richiedi preventivo
0

Condizione: Nuovo

Garanzia: 24 mesi

  • Dettagli

  • Scheda tecnica

  • Recensioni


Sennheiser TeamConnect Ceiling 2 microfono da soffitto

Sennheiser Teamconnect Ceiling 2 è un sistema di microfoni professionali con installazione a soffitto (incassato, filo  parete o a sospensione), ideale per sale riunioni, aule e in abbinamento a sistemi di audioconferenza e videoconferenza.

Il microfono da soffitto Sennheiser TeamConnect Ceiling 2, è certificato anche per utilizzo su Microsoft Teams Room.

TeamConnect Ceiling 2 garantisce un audio di qualità superiore per audio e videoconferenza. Grazie alla tecnologia dei microfoni Sennheiser Beamforming, segue automaticamente colui che parla.

Ciò significa che l'oratore , anche se in movimento, viene  "seguito" dai microfoni, garantendo sempre la miglior qualità audio possibile.

TeamConnect Ceiling 2 è interoperabile con il sistema Dante®.

E' controllabile via Sennheiser Cockpit per la gestione anche da remoto.

Nella confezione base sono inclusi:

  • TeamConnect Ceiling 2
  • 3-Pin phoenix connector
  • 8 piedini autoadesivi
  • Manuale

Opzioni di Sennheiser TeamConnect Ceiling 2:

  • Cornice per installazione a soffitto (506846)
  • kit per installazione a sospensione (508291)
  • Adattatore VESA (508620)
  • Staffe per incastro - adattatore da 590 a 625 mm (508290)
  • Staffe per incastro standard 590 mm (508528)

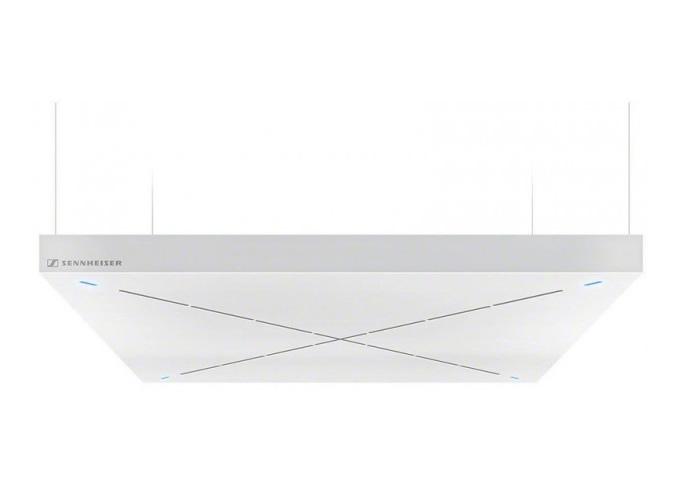

Sennheiser teamconnect ceiling 2 microfono per sala riunioni e videoconferenza

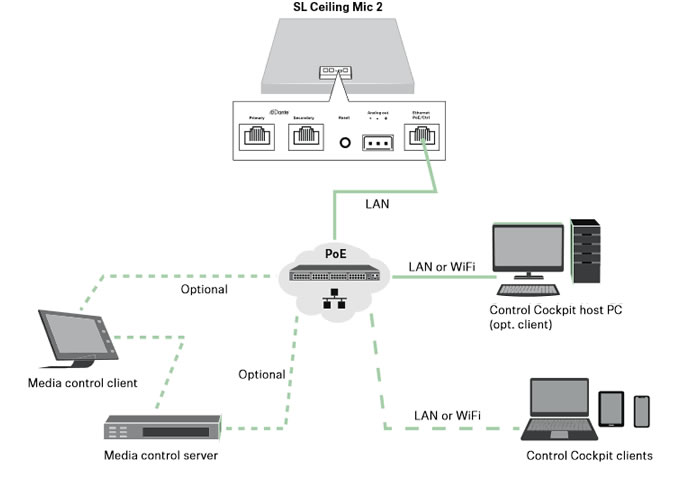

Microfono da soffitto sennheiser teamconnect ceiling

Caratteristiche tecniche Sennheiser TeamConnect Ceiling

  • Dimensioni: 590 x 590 x 43 mm
  • Peso: 5.670 g


Audio Output

  • 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
  • 2 x Digital Dante Network Audio (RJ-45 Primary and Secondary)


Ethernet / Control

  • 1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
  • Supply voltage 44 – 57 V DC
  • PoE IEEE 802.3af Class 3
  • Power consumption max. 8.8 W


Acoustic properties

  • Transducer principle: Pre-polarized condenser micro-phone
  • AF frequency response 160 Hz - 18,000 Hz
  • Sensitivity0 dBV/Pa (988 mV/Pa)
  • Signal-to-noise ratio 83 dB (A)
  • Latency 4 ms
  • Equivalent noise level11 dB (A)
  • Number of KE 10-237 capsules:28
  • Pick-up pattern: Beam Pattern
  • Max. sound pressure level: 104 dB SPL
  • Dynamic range93 dB (A)


Ambient conditions

  • TemperatureOperation: Storage: 0 - 40°C  (32 - 104 °F) –10 - 60°C (14 - 140 °F)
  • Realtive air humidity20 - 95 %,non-condensing

The ceiling mounted microphone array shall be designed for fixed installation in medium to large conference rooms.

The microphone array shall fit within the space of a standard 600 mm (2 ft.) ceiling panel and shall be mountable either onto or flush with the ceiling itself.

Several mounting accessories shall be available, including a ceiling suspension kit, a ceiling fixation bracket as well as mounting brackets for US size ceiling panels and for 625 mm ceiling panels.

Additionally, a VESA adapter shall be available for all standard 100 mm and 200 mm VESA mounting material.

The microphone array shall consist of 28 Sennheiser KE 10-237 pre-polarized condenser microphone capsules and shall use beamforming technology that automatically focuses on whoever is speaking in the room.

The beam will automatical-ly detect the position of the person speaking and will follow the person around the room at all times. A threshold for the detection shall be adjustable.

Live monitoring of the horizontal and vertical angle of the position shall be available in the Sennheiser Control Cockpit control software.

The microphone array shall have a Dante™ interface with two RJ 45 sockets (Primary and Secondary) for digital audio output, supporting both redundant and daisy-chain modes.

The microphone array shall also feature a 3-pin terminal for analog audio output, which is compatible with Phoenix contact MCVW 1.5-3-ST-3.81 connectors.

In addition, the microphone array shall have an RJ 45 Ethernet socket for network control and easy configuration and mo-nitoring using the Sennheiser Control Cockpit control software.

The RJ 45 Ethernet socket shall also support Power over Ethernet, using the PoE IEEE 802.3af Class 3 standard. 802.1X network configuration shall be possible via SSH protocol.The microphone array shall feature a reset button for restoring the factory settings.

The microphone sensitivity shall be 0 dBV/Pa (988 mV/Pa).
